Rolled ball screws

Benefits

  • Customised solutions available
  • Excellent value for money and a competitive alternative to ground ball screws
  • Corrosion protected nuts
  • Design adaptable to most positioning operations, with no play or slack

Features

  • Standard composite or steel recirculation inserts
  • Nut phosphate coating for corrosion protection
  • Backlash elimination by oversized balls on request (BX/BN/BND designation)
  • Design well suited for positioning screws (SN/SND series)
Universal ball screws from Ewellix are based on precision roller technology and represent compact, highly efficient drive solutions.
The nut can be equipped with a threaded tip or a flange (either cylindrical or in accordance with DIN 69051) for easy installation.
Depending on the application, special flanges can optionally be attached to the threaded tip of the nut. If required, customer-specific solutions are also available.
This design is suitable for most positioning applications thanks to the precision ground outer surface of the nut, flange support and nut thread. The range is offered by Ewellix with anti-slip or preloaded products for even greater positioning accuracy.
This extremely high-quality ball screw series is a competitive alternative to ground ball screws. In addition, it is a cost-effective replacement for DIN nut versions in most applications.

Case studies:

      Nominal diameter

      from 16 to 63 mm

      Lead

      from 5 to 40 mm

      Basic dynamic load capacity

      from 14 to 91,2 kN

      Basic static load capacity

      from 23,8 to 248,3 kN

      Axial play

      from 0,00 to 0,12 mm

      Maximum speed n x d0

      50 000

      SX/BX

      SX/BX

      Universal rolling screw with cylindrical grooved nut providing axial clearance or without slippage

      SN/BN/PN

      SN/BN/PN

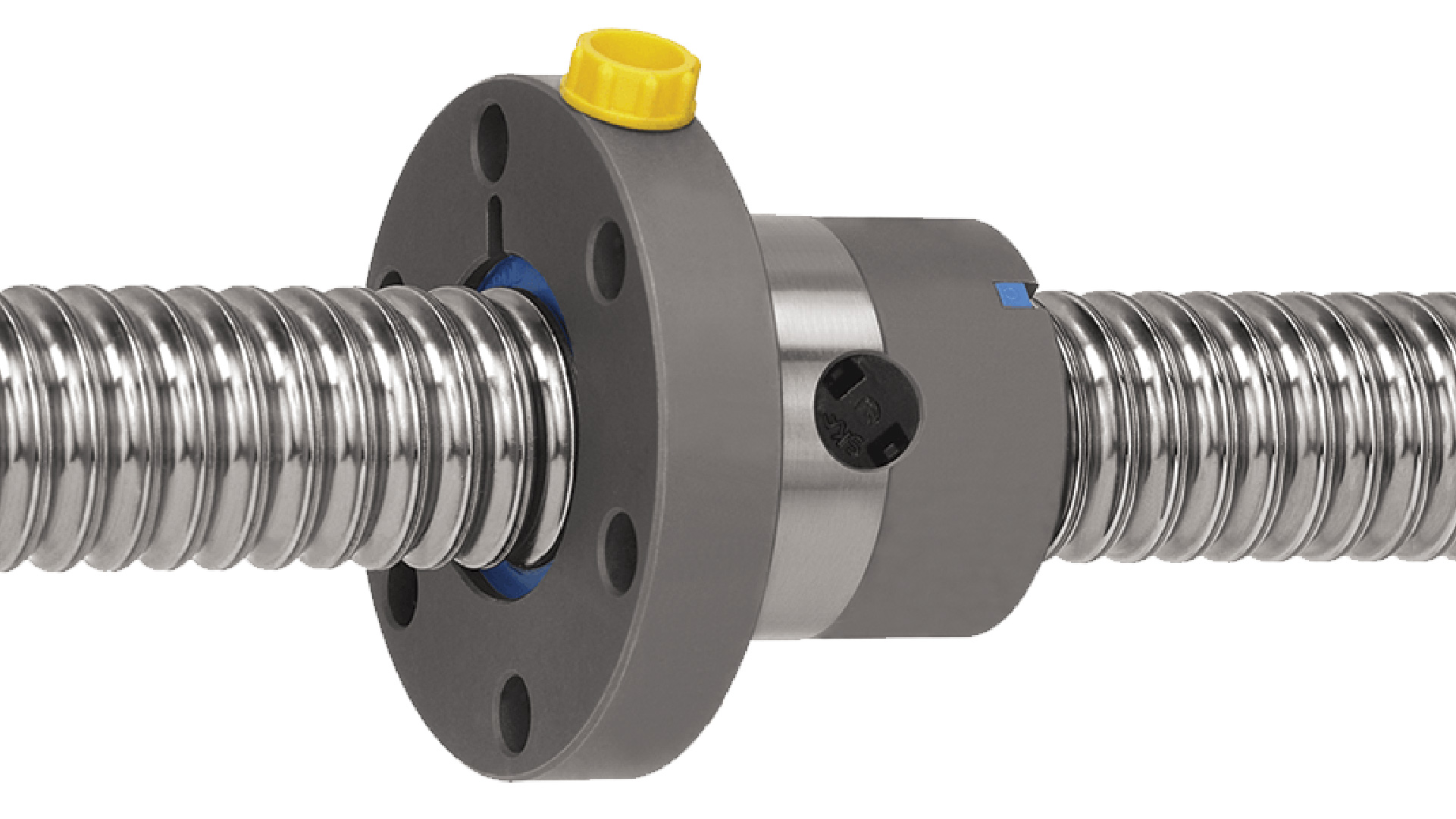

      Precision rolling screw with cylindrical flange nut, axial clearance without slippage or preloaded

      SND/BND/PND

      SND/BND/PND

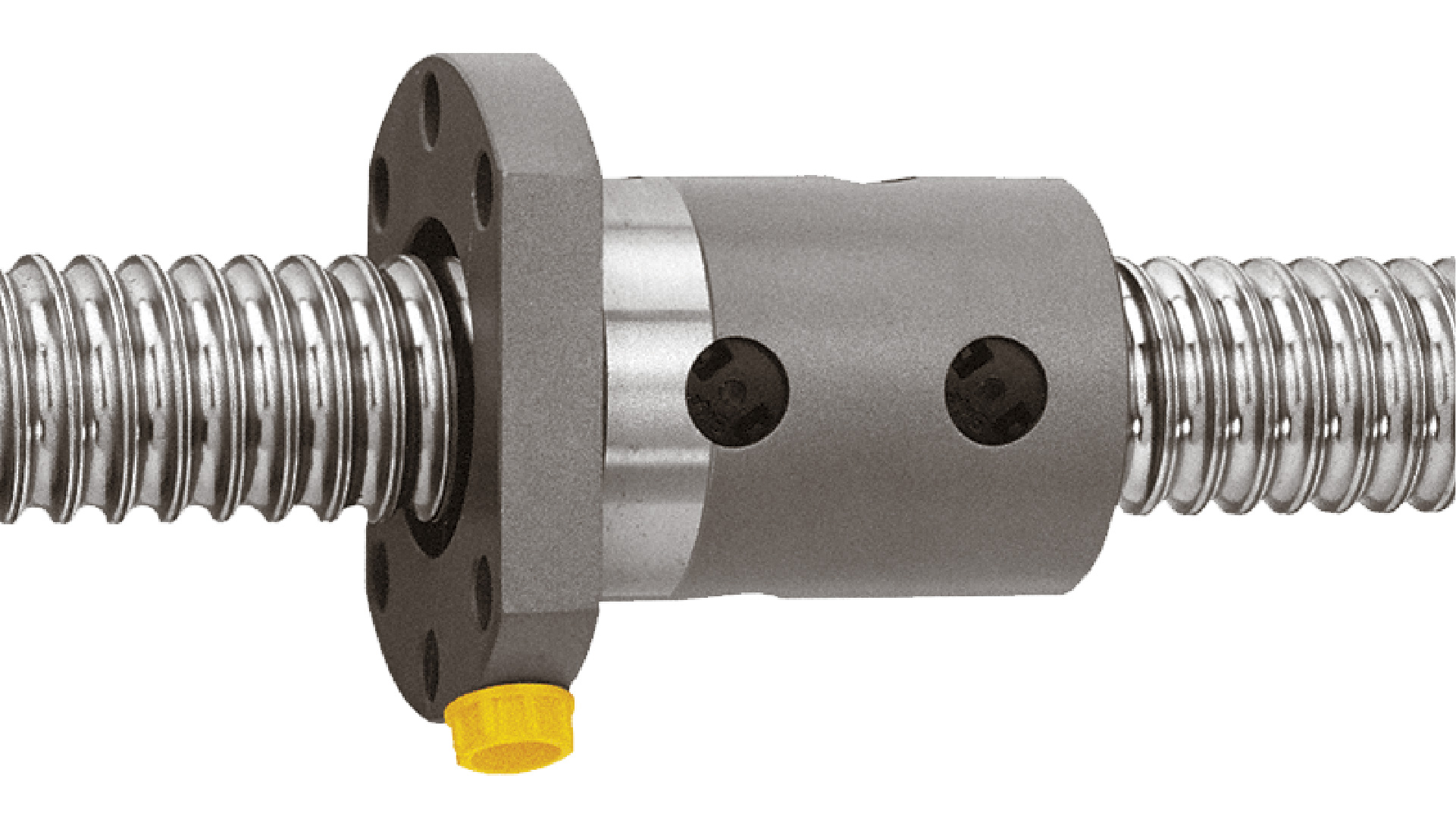

      Precision rolling screw with DIN flange nut, axial clearance, no slip and preloaded

      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
