Linear slides

Benefits

  • Ready configured quadro slides in flexible length
  • Low friction high efficiency self-aligning bearings
  • Easy to install with low maintenance

Features

  • Flexible in slide length and linear stroke
  • Standard high-quality components
  • Range in open or closed bearing design

Linear slides bearing for manual movement are based on linear ball bearings with self-aligning features. Every part of the linear slide bearing is pre-qualified and only the length for the stroke should be picked. Please contact us for more information about our linear bearings product range!

      Speed
      up to 5 m/s
      Acceleration
      up to 100 m/s2
      Operating temperature
      -20 to +80 °C
      Diameter range
      from 8 mm to 80 mm
      Dynamic load rating C
      up to 37 500 N
      Static load rating Co
      up to 32 000 N

      LZBU A

      LZBU A

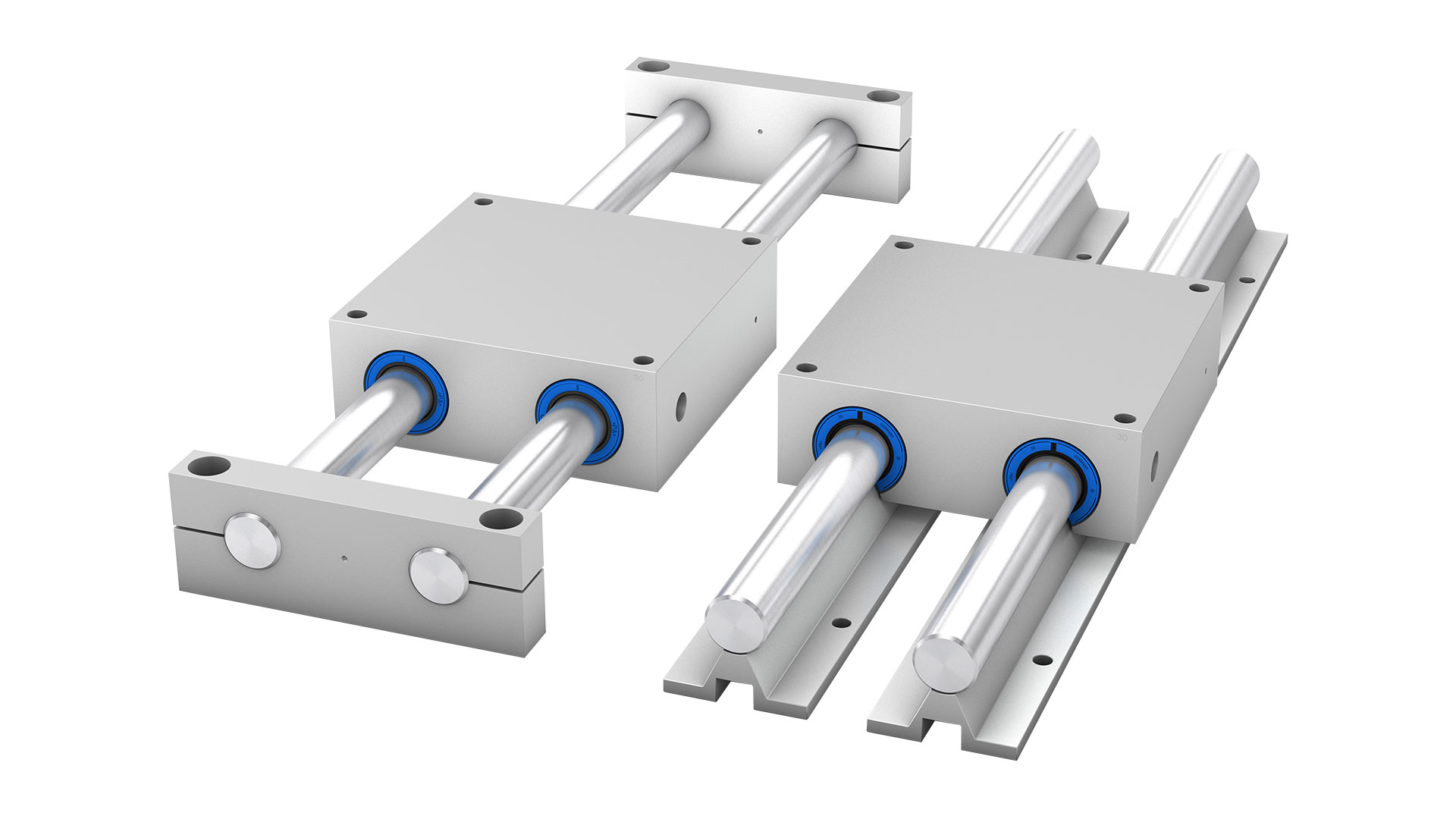

      Linear slide designed for fixed shaft blocks and moving quadro unit. Standard range slide (ISO series 3) with 2 shafts and shaft blocks available from 8-50 mm in up to 3 m length.

      LZBU B

      LZBU B

      Linear slide designed for fixed quadro unit and moving shaft blocks. Standard range slide (ISO series 3) with 2 shafts and shaft blocks available from 8-50 mm in up to 3 m length.

      LZAU

      LZAU

      Supported slide design to avoid shaft bending for more rigidity. Standard range slide (ISO series 3) with 2 shafts and shaft supports available from 12-50 mm.

      IL-06013/7-EN-January 2023 Linear bearings units and shafts
      IL-06015-US-September 2020 Inch linear ball bearings

      Available only for USA market

      EL-04010/1-EN-May 2023 WhyEwellix-LBB
      Linear ball bearings specification sheet
