Precision rails with ball assemblies

Benefits:
  • High precision and accuracy in motion
  • Space saving design
  • Smoothest running performance
Features:
  • Precision available in small sizes
  • Lowest friction with no ball recirculation
  • Anti-creeping system ACSM option

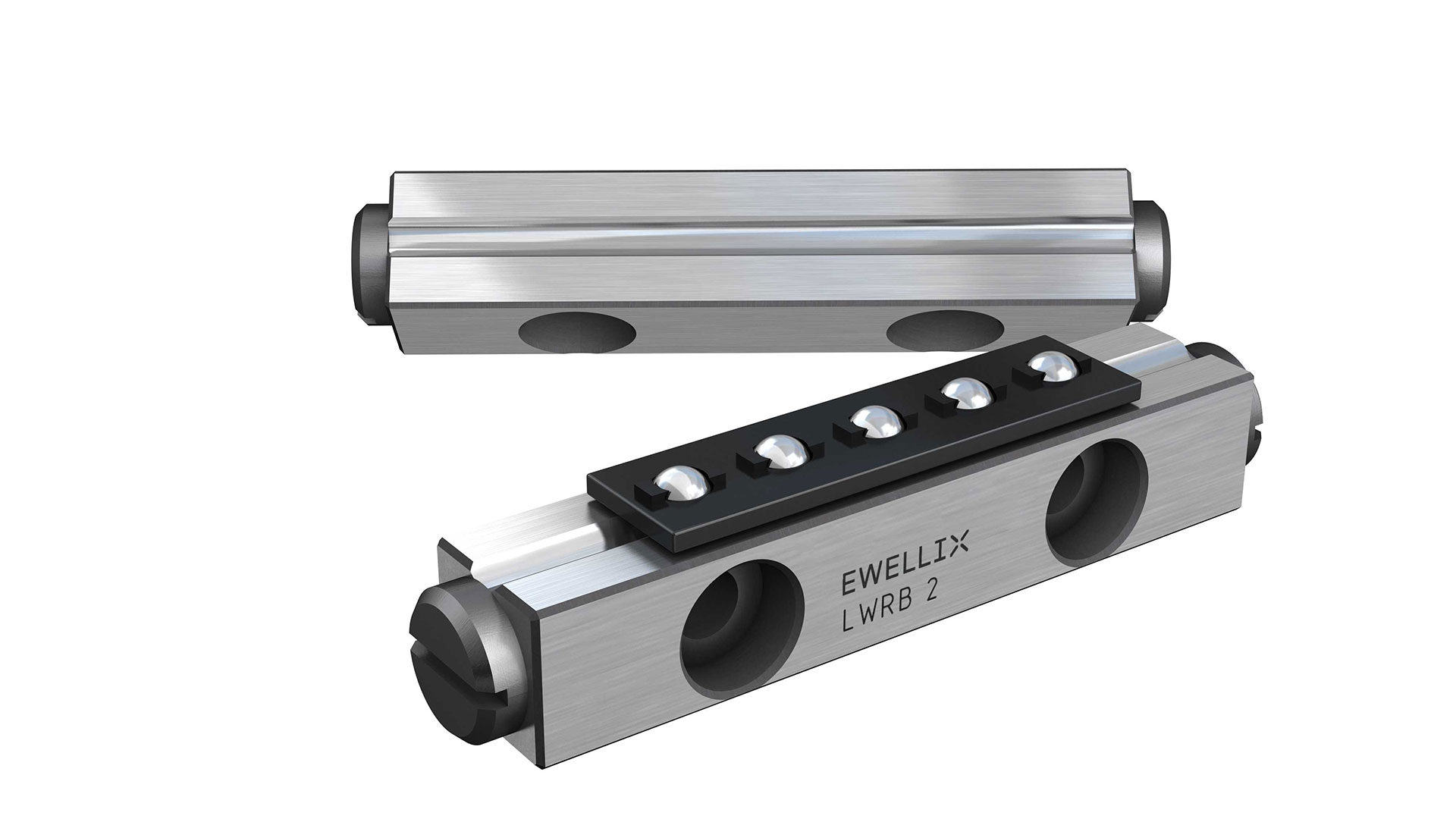

Ewellix LWRB ball assemblies offer the lowest friction for precision rail guides where lighter loads are in motion. The ball design with ball retaining cages has the smallest built in dimensions and is optional available with Anti-Creeping System ACSM to avoid cage creeping during motion.

Product tab contents

Technical Data

Sub tab

Overview

LWRB

LWRB (ACSM)

Range

Size 1, 2

Size 2

Speed

2 m/s

2 m/s

Acceleration

25 m/s2

160 m/s2

Accuracy

up to 1 µm / 200 mm rail

up to 1 µm / 200 mm rail

Operating temperature

-30 to +80 °C (higher temperature possible, depend on cage material)

-30 to +80 °C (higher temperature possible, depend on cage material)
Rails and cage types

LWRB type

Available in standard sizes 1 and 2 for precise low friction motion with suitable ball assembly type LWJK.

LWRB ACSM

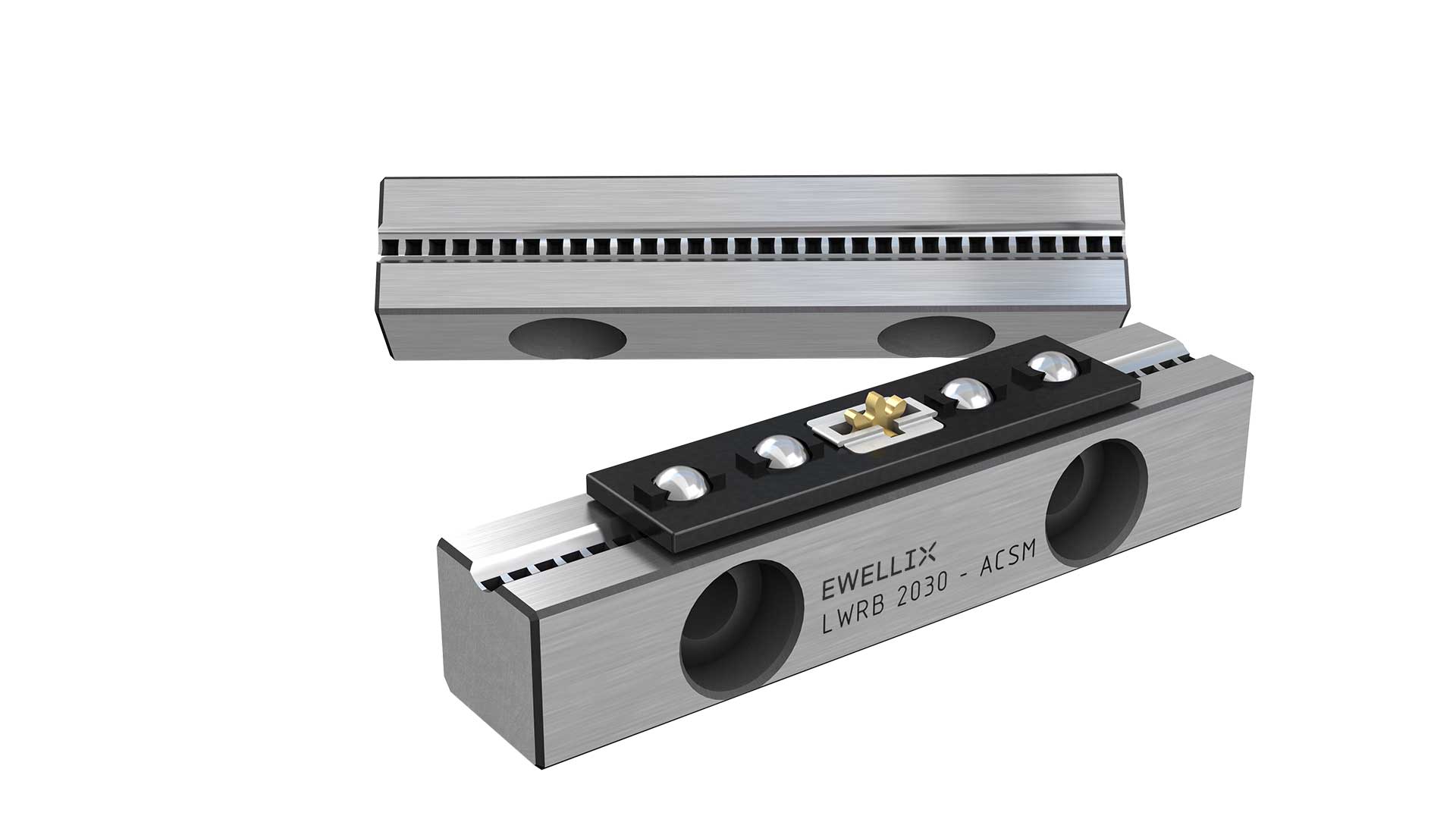

Made from stainless steel material in size 2 with LWJK ACSM (Anti-Creeping-System) ball assembly to avoid cage creeping during motion.

End pieces

LWERA

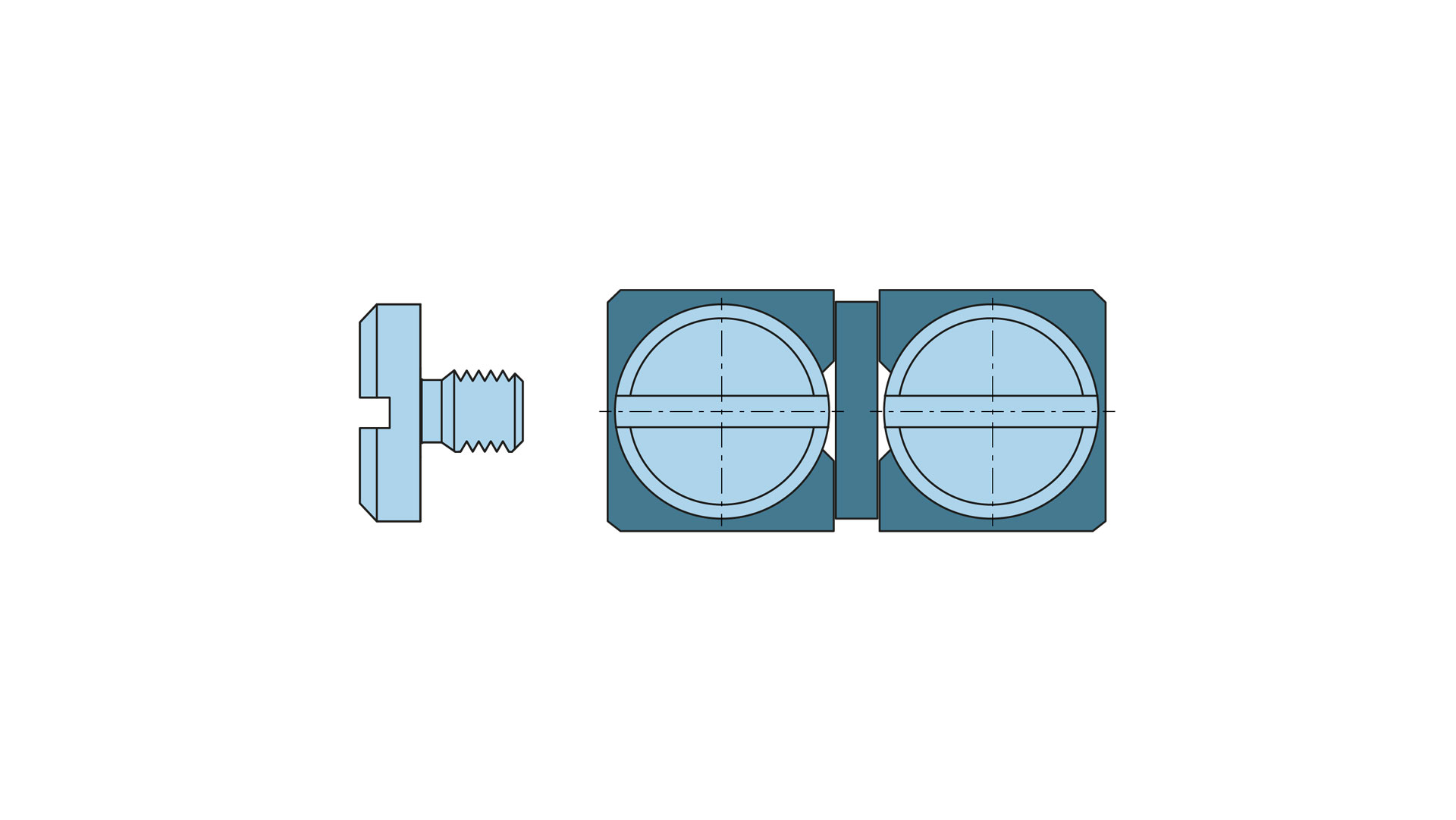

Available in sizes 1 and 2 with wide head screw that would prevent the cage from moving out.

LWERB

Available in size 1 and 2 with washer that prevents the cage from moving out.
