LIFTKIT-YA

Benefits

  • Extended operating range of YASKAWA cobots to increase productivity and save costs
  • High positioning precision and stability
  • No hardware/software upgrades required
  • Direct positioning access within the YASKAWA control environment
  • Compatible with VISUAL COMPONENT software

Features

  • YASKAWA CRX-ready product
  • Easy to install plug-and-play system
  • Software plugin YASKAWA control system included
  • Robust column design for industrial use
  • LIFTKIT-YA-601: For small and medium-sized YASKAWA cobots (HC10, GP4, GP7 & GP8)
  • LIFTKIT-YA-630: For large YASKAWA cobots (HC20 & HC30)

Robots are essential in automation, performing repetitive or hazardous tasks. The ready-to-install LIFTKIT extends the reach of YASKAWA robots by moving them along a vertical axis, optimizing the robot base’s position. This increased reach enhances productivity and reduces costs. The LIFTKIT-YA series includes the YA-601 for small and medium-sized YASKAWA cobots (HC10, GP4, GP7 & GP8) and the YA-630 for large YASKAWA cobots (HC20 & HC30).

These two sizes cover the entire range of YASKAWA cobots, ensuring you have the right solution for any application. The LIFTKIT-YA includes a lifting column, control unit, and YASKAWA software plug-in for programming and control via standard TCP/IP protocol. It features redundant, safety-certified relays for safe stopping during operation and includes a YASKAWA mounting plate with additional threaded holes for external cable transport systems.

      LIFTKIT YA 601 LIFTKIT YA 630
      Push load 1500 N 2400 N
      Pull load 0 0
      Robot compatibility HC10, GP4, GP7 & GP8 HC20 & HC30
      Max stroke (mm) 500 to 1 400 mm 500 to 1000 mm
      Operating temperature 10 to +40 °C 10 to +40°C
      Type of protection IP 40 IP 40
      Max. speed no load (mm/s) 80 mm/s 55 mm/s
      Duty cycle (%) 10 10
      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

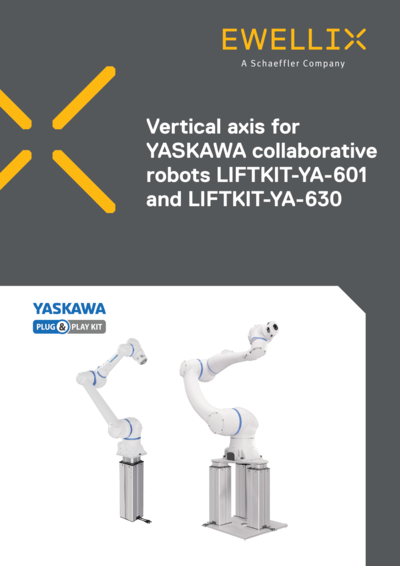

      IL-07039-1-EN-April 2025-LIFTKIT-YA-datasheet

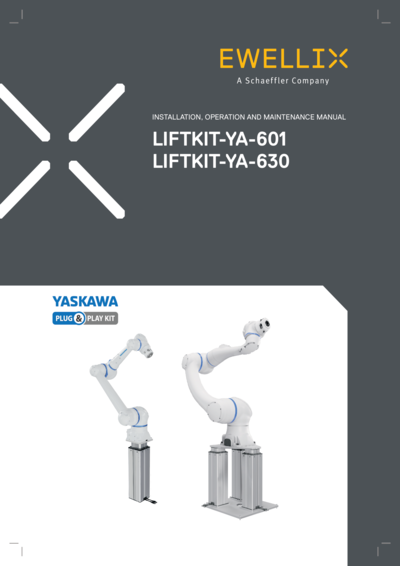

      TC-08057/1-EN-April 2025_LIFTKIT-YA manual
      EL-03012/2-EN-November 2024 - Linear technology for flexible assembly lines
      EL-03014/2-EN-November 2024 - Solutions for material handling
      EL-03018/1-EN -February 2023 - 7th axis solutions to boost your robot s capabilities

      LIFTKIT Yaskawa installation
