Single linear units for industrial applications

Benefits

Quick and easy installation
Flexibility in design any kind of linear slide
Low friction energy saving motion solution

Features

Lightweight casted design
Wide range of unit designs including flanged ones
Factory pre-lubricated and ready for use

To support easy designs of linear slides in any kind of width and length, single units are the best fit. The wide range of single linear bearing units for the compact version (ISO series 1) and the standard version (ISO series 3) allow flexibility and modularity in design.

Technical Data

Overview

Speed	up to 5 m/s
Acceleration	up to 100 m/s2
Operating temperature	-20 to +80 °C
Diameter range	from 8 to 80 mm
Dynamic load rating C	up to 37 500 N
Static load rating Co	up to 32 000 N

Types

LUHR

LUHR

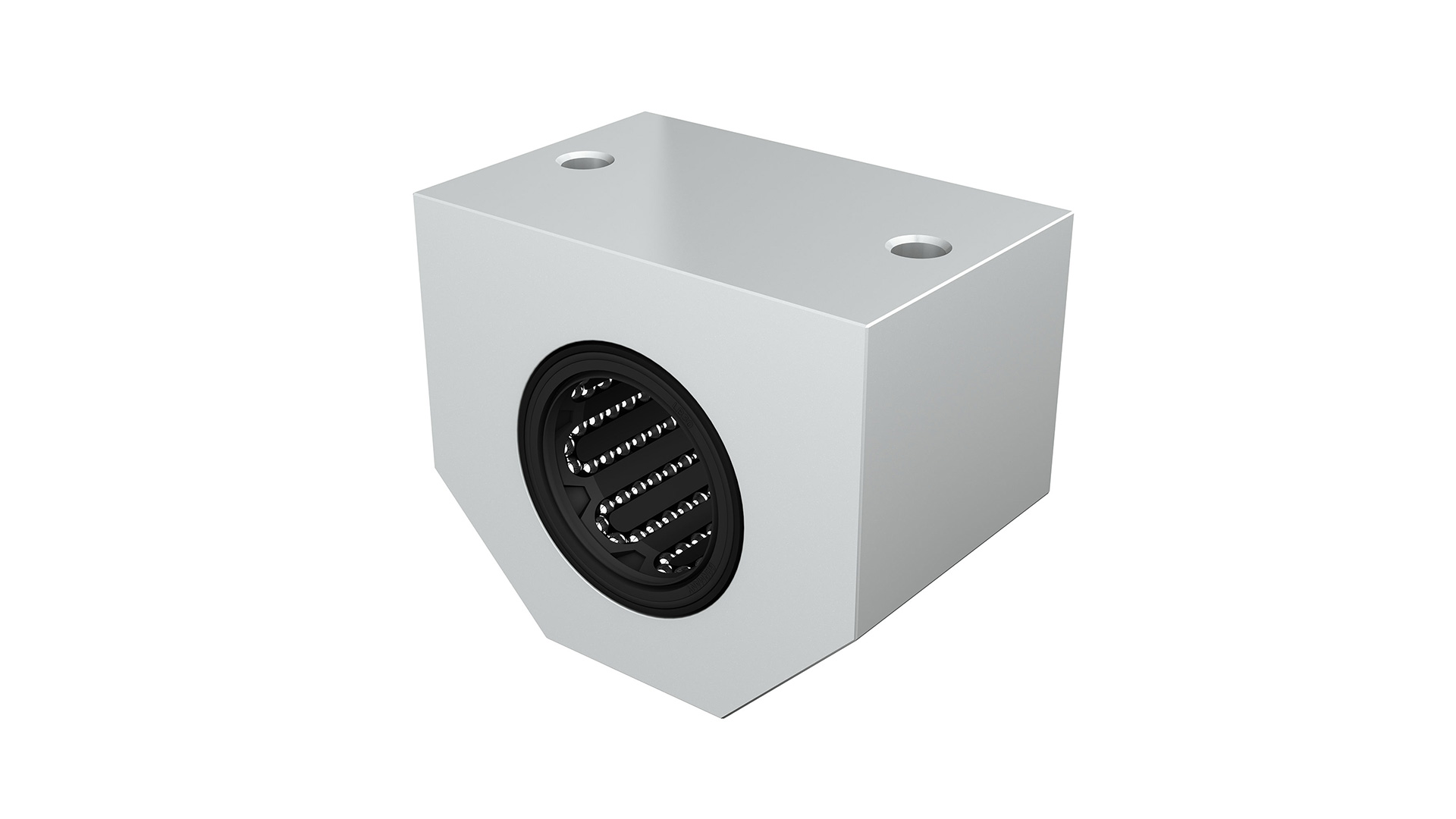

Compact unit in closed design with self-holding LBBR bearing (ISO series 1) from 12 to 50 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.

LUJR

LUJR

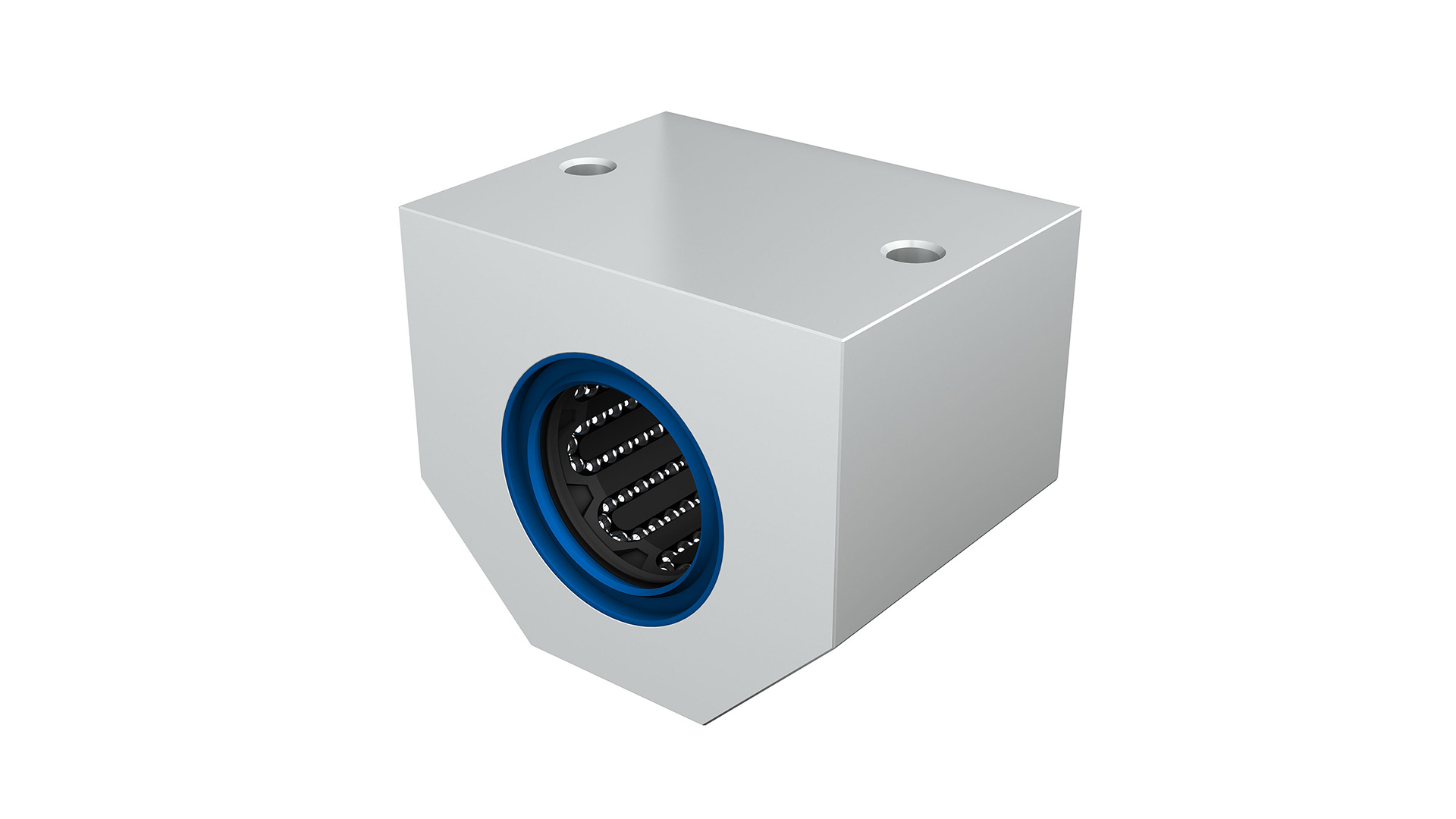

Compact unit in closed design with LBBR bearing and external seals (ISO series 1) from 12 to 50 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.

LUCD

LUCD

Standard unit in lightweight closed design with self-aligning LBCD bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded or stainless steel.

LUCR

LUCR

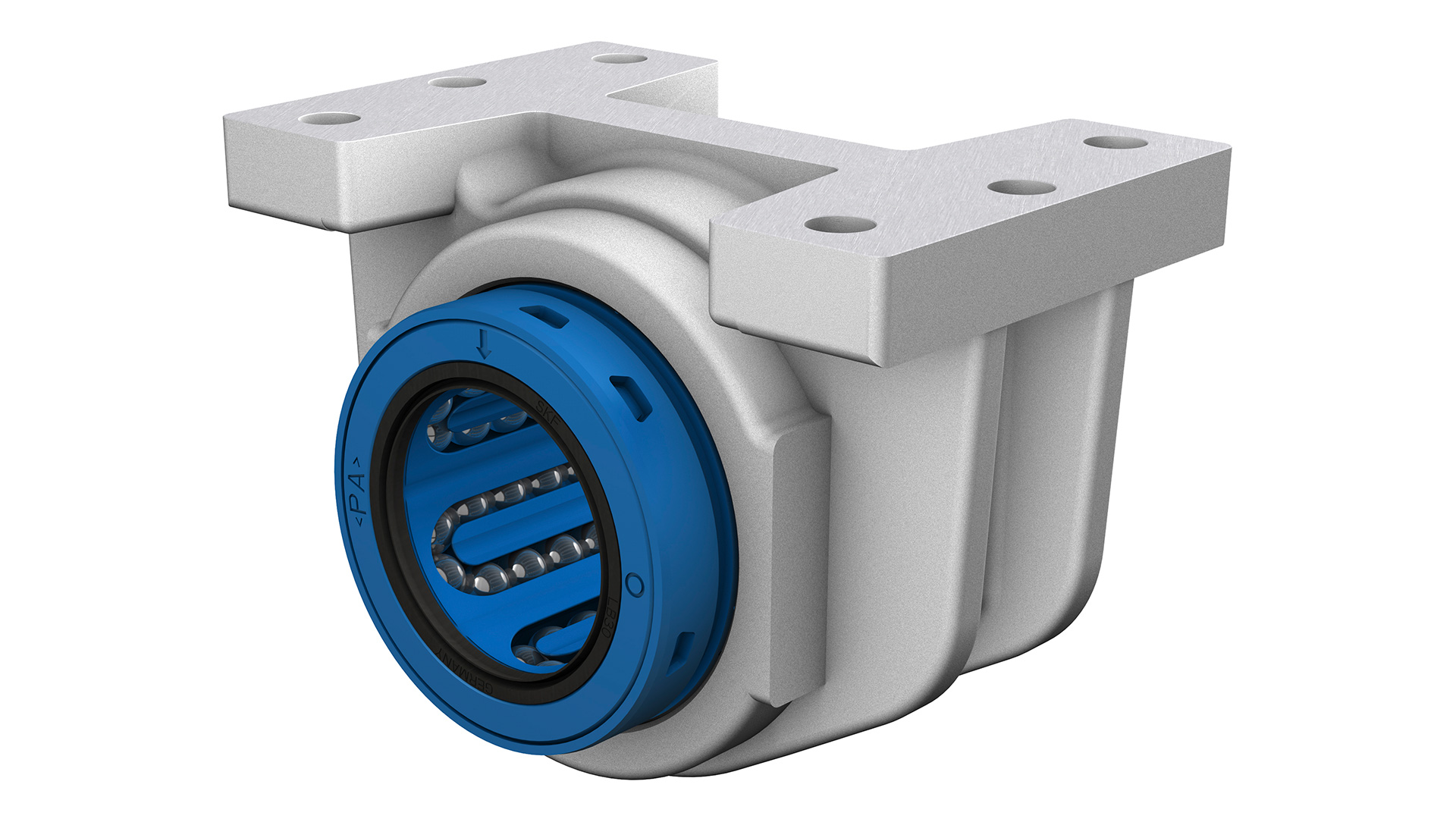

Standard unit in lightweight closed design with rigid LBCR bearing (ISO series 3) from 8 to 80 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.

LUCE

LUCE

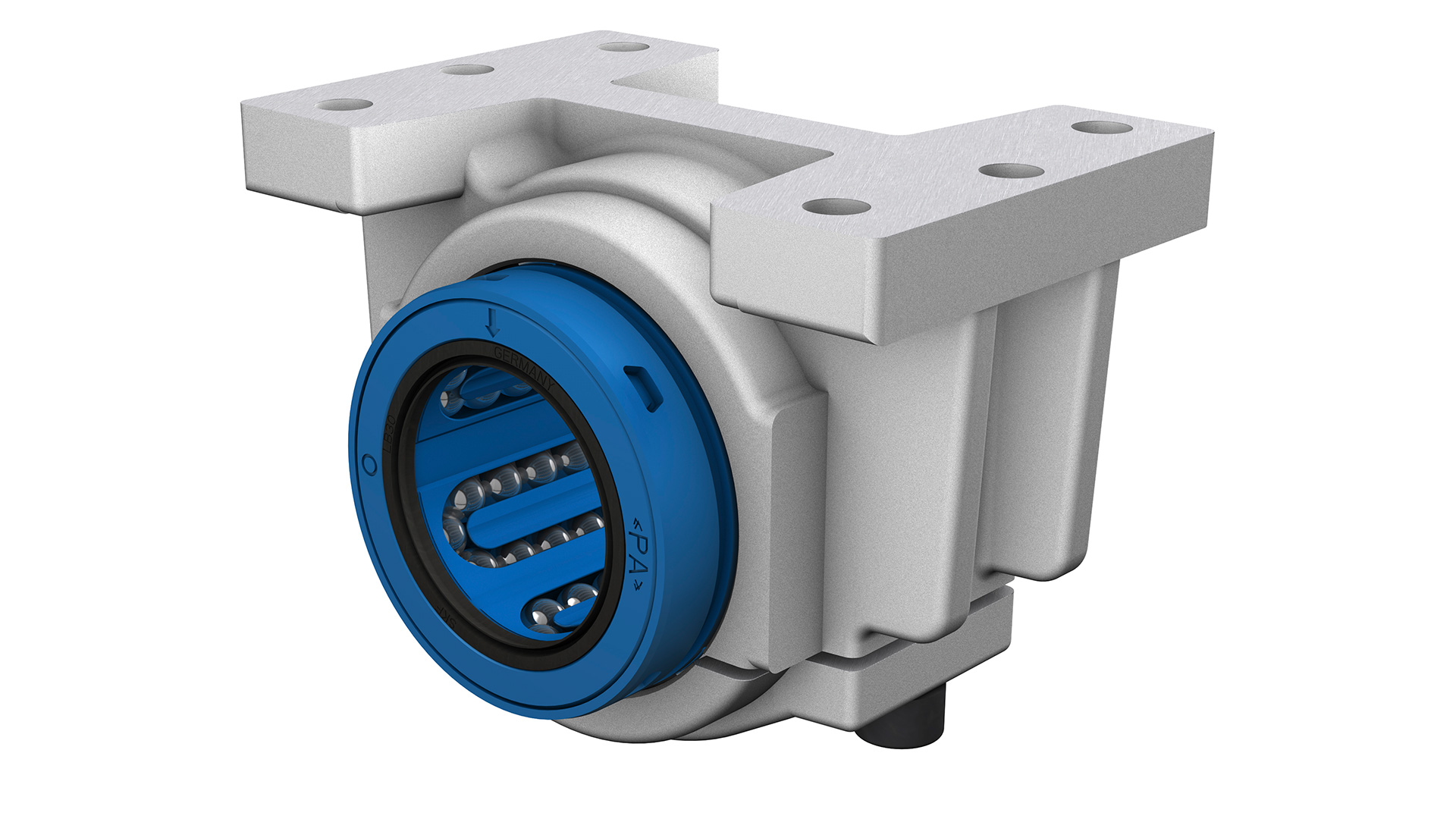

Standard unit in lightweight slotted design with self-aligning LBCD bearing (ISO series 3) from 12 to 50 mm shaft size for adjustable clearance. Variants: sealed, shielded or stainless steel.

LUCS

LUCS

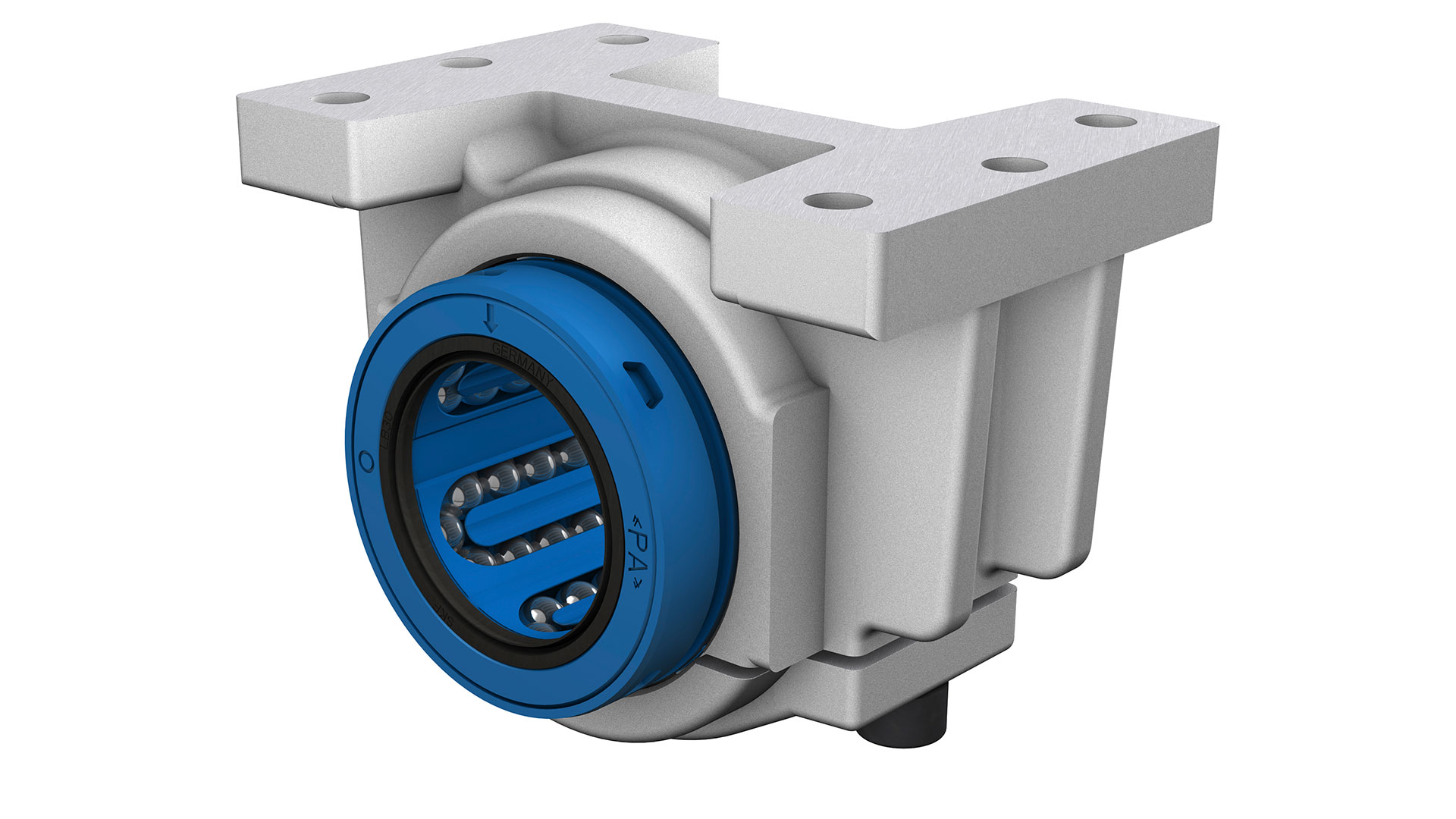

Standard unit in lightweight slotted design with rigid LBCR bearing (ISO series 3) from 8 to 80 mm shaft size for adjustable clearance. Variants: sealed, shielded or stainless steel.

LUCF

LUCF

Standard unit in lightweight open design with self-aligning LBCF bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded or stainless steel.

LUCT

LUCT

Standard unit in lightweight open design with rigid LBCT bearing (ISO series 3) from 8 to 80 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.

LUCT..BH

LUCT..BH

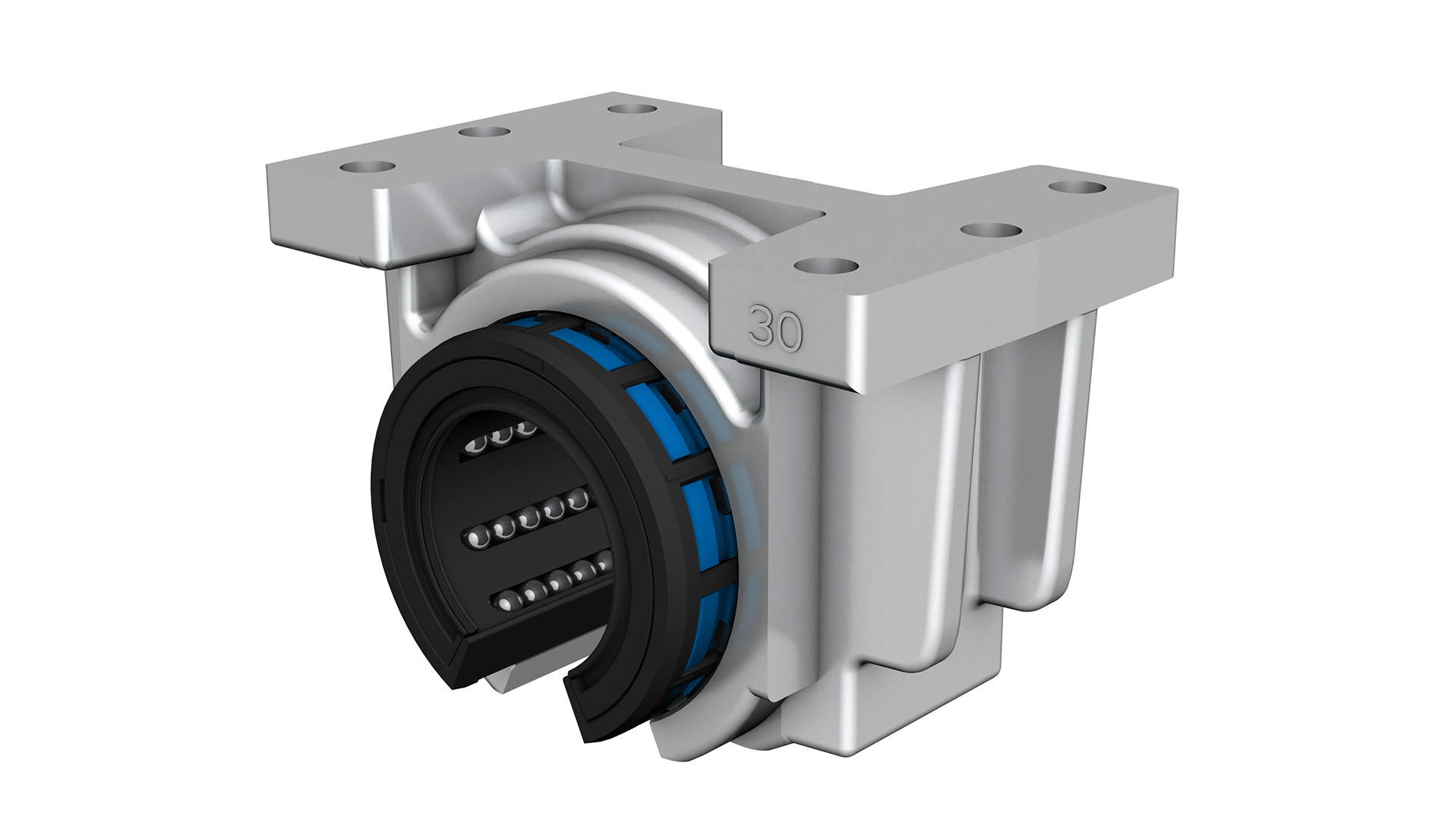

Standard unit in lightweight heavy duty open design with rigid LBHT bearing (ISO series 3) from 20 to 50 mm shaft size. Variants: sealed, shielded or stainless steel.

LUND

LUND

Standard unit in closed design with self-aligning LBCD bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded or stainless steel.

LUNR

LUNR

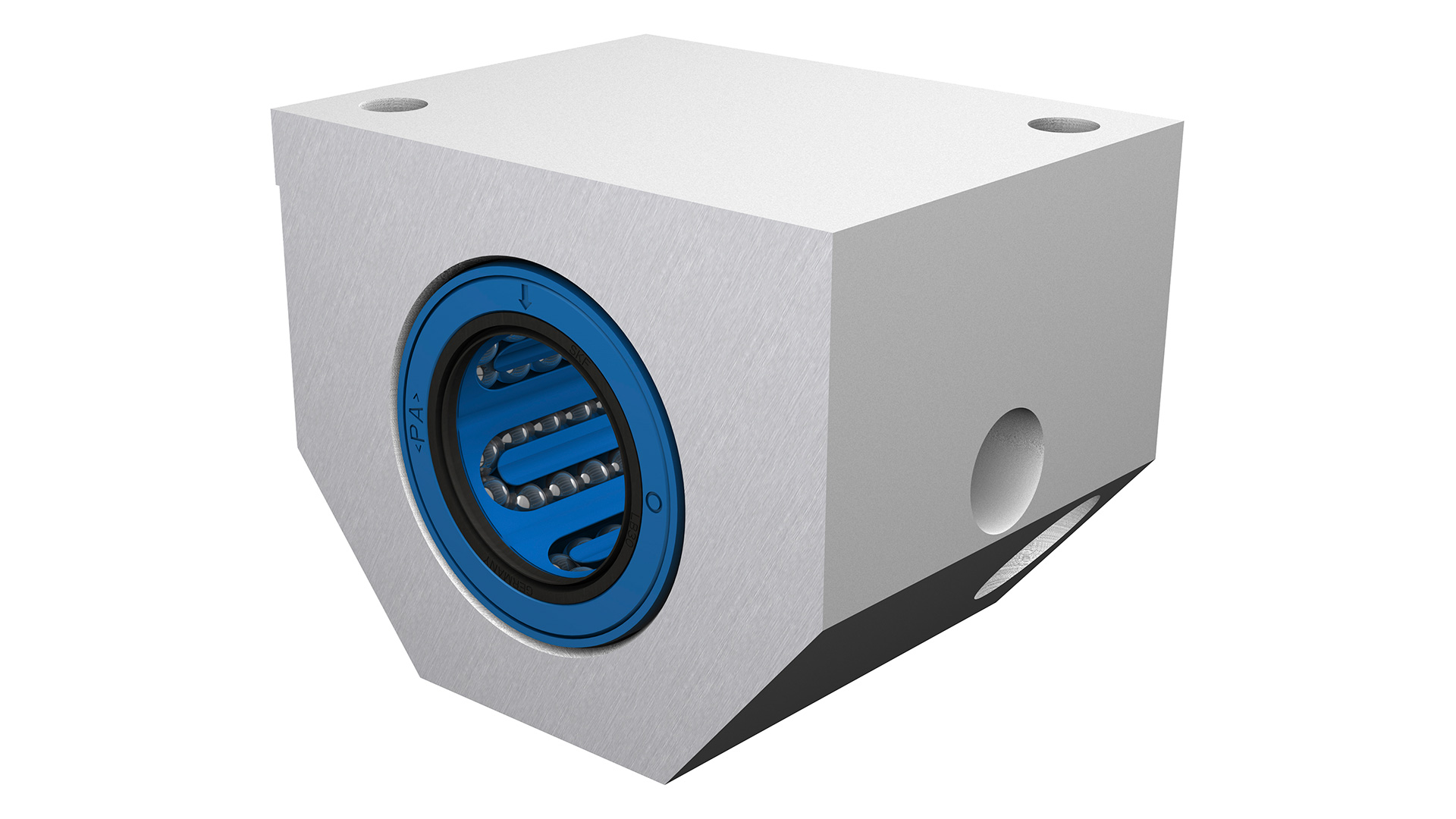

Standard unit in closed design with rigid LBCR bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.

LUNE

LUNE

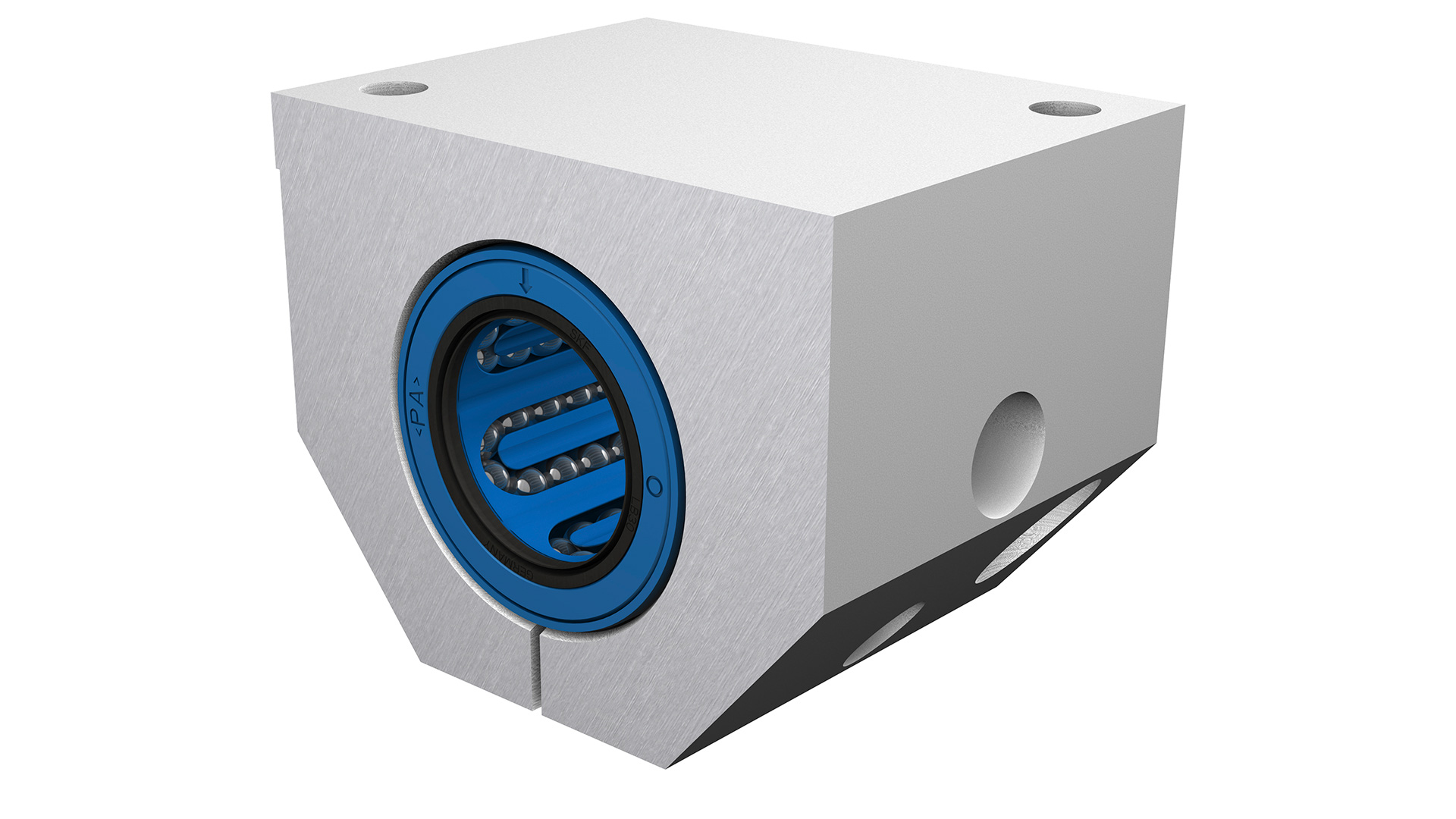

Standard unit in slotted design with self-aligning LBCD bearing (ISO series 3) from 12 to 50 mm shaft size for adjustable clearance. Variants: sealed, shielded or stainless steel.

LUNS

LUNS

Standard unit in slotted design with rigid LBCR bearing (ISO series 3) from 12 to 50 mm shaft size for adjustable clearance. Variants: sealed, shielded or stainless steel.

LUNF

LUNF

Standard unit in open design with self-aligning LBCF bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded or stainless steel.

LUNT

LUNT

Standard unit in open design with rigid LBCT bearing (ISO series 3) from 12 to 50 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing

LVCD

LVCD

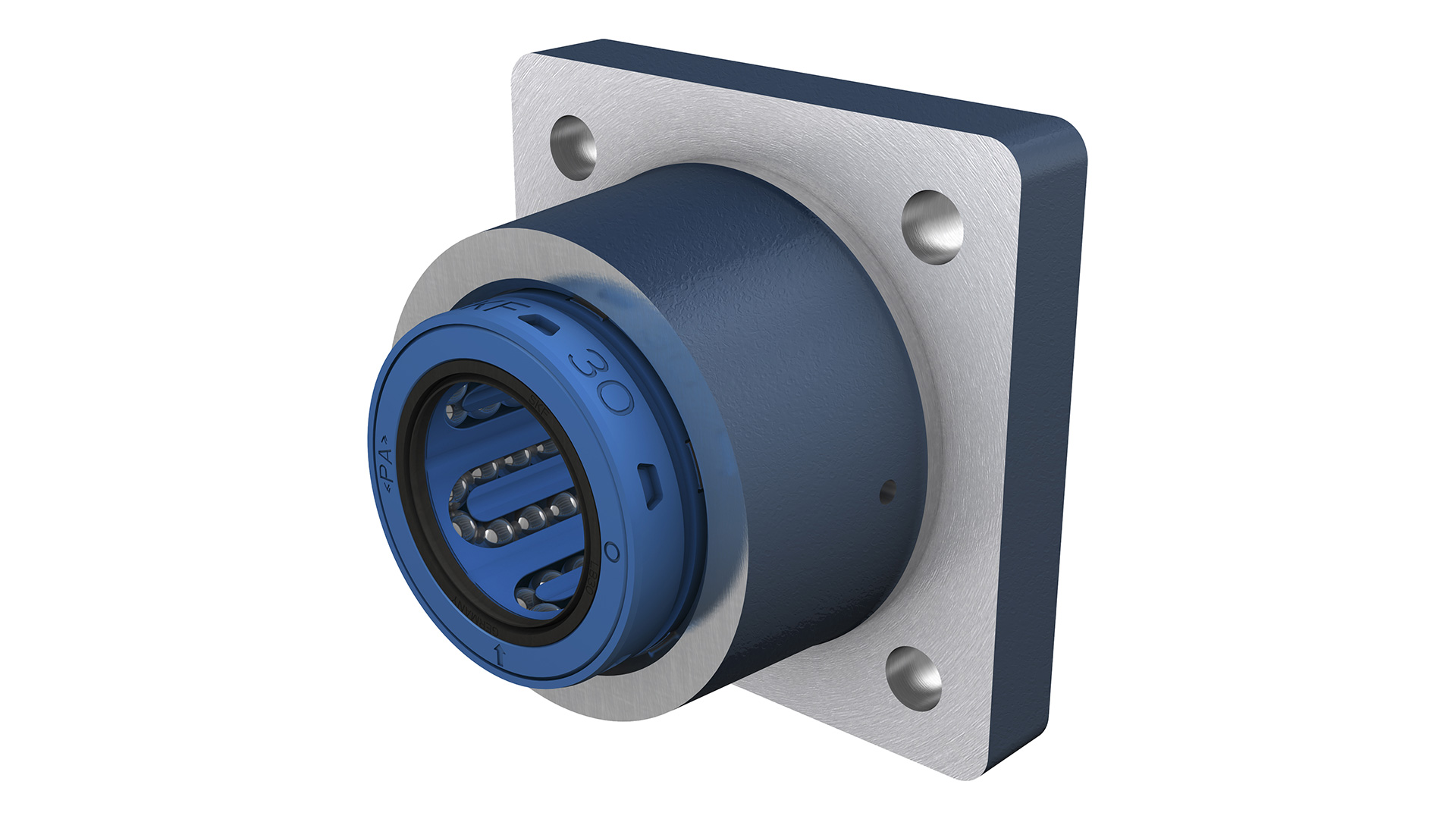

Standard unit in flanged design with self-aligning LBCD bearing (ISO series 3) from 12 to 80 mm shaft size. Variants: sealed, shielded or stainless steel.

LVCR

LVCR

Standard unit in flanged design with rigid LBCr bearing (ISO series 3) from 12 to 80 mm shaft size. Variants: sealed, shielded, stainless steel or plain bearing.
