CPMA

Benefits:
  • Compatible with virtually all international voltage and frequency standards
  • No vibration with soft start and soft stop commands
  • Stylish design for medical equipment, with IEC 60601-1 approval
  • Plug-and-play solution that reduces time-to-market
Features:
  • Built-in universal power supply unit with cable through lifting column
  • Soft start and stop control
  • Higher load-carrying capacity with high speed
  • Multiple outlet socket accessories and customised colours

For ophthalmological devices
The lifting columns of the CPMA series have been developed by Ewellix especially for ophthalmological devices and are designed as compact, two-part units which give designers the possibility to combine different performance features.
With the CPMA lifting columns, no compromises are necessary when it comes to aesthetics, noise and vibration damping or hygiene. The colouring of the aluminium frame can be individually customised.

Product tab contents

Technical Data

Sub tab

Overview
Push load

up to 2 000 N

Pull load

0 N

Max stroke (mm)

200 to 400 mm

Voltage

100-240 V AC 50/60 Hz
24 V DC

Operating temperature

+10 to +40 °C

Type of protection

IP 30

Max. linear speed no load (mm/s)

up to 15 mm/s

Duty cycle (%)

10

Dynamic offset load

up to 250 Nm

2D / 3D

Warning Message

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

Publications
IL-05002/7-EN-January 2023 Actuator range
IL-07005/2-EN-December 2021 CPMA

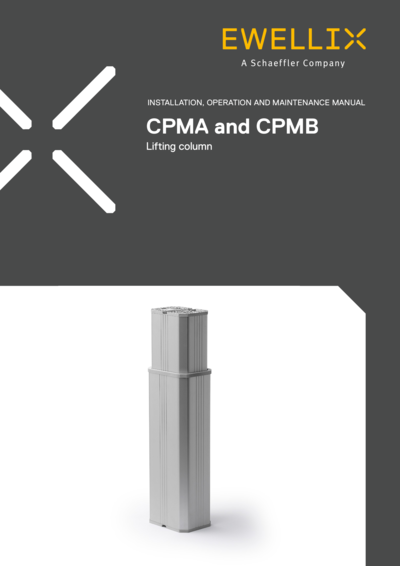

TC-08028-EN-April 2020 CPMA-CPMB operating manual
EL-02003-EN-November 2019 Safety and reliability in motion
EL-03010/2-EN-February 2023 Solution for ophthalmic equipment
