LIFTKIT-UR

Benefits

  • Extended operating range of UR cobots to increase productivity and save costs
  • No hardware/software upgrades required
  • Direct positioning access within the UR control environment
  • Vibration-free and virtually maintenance-free movement
  • Compatible with VISUAL COMPONENT software
  • Compatible with several palletising software such as Pally

Features

  • Certified UR+ positioning axis
  • Ready-to-use complete system
  • Software plugin (UR Caps) for UR control system included
  • Robust column design for industrial use
  • Enhanced version for UR20 and UR30

Robots are often used for palletising, material handling, inspection, construction, etc., but reach their limits once the robot arm is fully extended at a certain height. The easy-to-assemble LIFTKIT increases the reach of any Universal Robot cobot by moving it along a vertical axis.
The cobot base can be raised or lowered during palletising so that it is always in an optimum working position. This increased range improves productivity and reduces costs.


The LIFTKIT-UR is a ready-to-install system and includes a lifting column with a UR mounting interface, a controller and a software plug-in for robots from Universal Robots (UR Cap) so that movements can be programmed directly via the UR controller.
The UR mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.

Case studies:

      LIFTKIT-UR-601 LIFTKIT-UR-620
      Push load 1 500 N 1 500 N
      Pull load 0 0
      Robot compatibility UR3, UR5, UR10, UR16 UR20, UR30
      Max stroke (mm) 500 to 1 400 mm 800 mm
      Operating temperature +10 to +40 °C +10 to +40 °C
      Type of protection IP 40 IP 40
      Max. speed no load (mm/s) 80 mm/s 80 mm/s
      Duty cycle (%) 10% (20% at 500N) 10%
      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
      IL-07022/8-EN-March 2024 LIFTKIT-UR

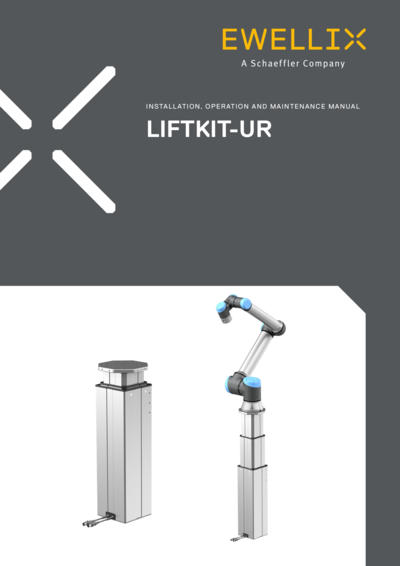

      TC-08038/7-EN-March 2024 LIFTKIT-UR operating manual
      TC-08048-EN-March 2021 LIFTKIT quick start guide
      EL-03012/1-EN-September 2022 Linear technology for flexible assembly lines
      EL-03014/1-EN-September 2022 Solutions for material handling
      EL-03018/1-EN -February 2023 7th axis solutions to boost your robot s capabilities

      Liftkit and slidekit - extend your possibilities
