Runner

Benefits:
  • Designed for medical devices, compliant to IEC 60601-1
  • Silent operation
  • High push/pull force capability
  • Synchronisation capability
Features:
  • Medically approved in accordance with IEC 60601-1
  • Compatible control units, operating devices and accessories available
  • Spindle supplied as standard
  • High safety factor

The Runner is a very compact and powerful linear actuator up to 12 000 N, targeting high load applications for medical devices. The series is medically approved and available with options such as anti pitching, incremental position feedback and emergency lowering. The system includes a single fault safe control unit for up to 3 actuators as well as related accessories.

Product tab contents

Technical Data

Sub tab

Overview
Push load

up to 12 000 N

Pull load

up to 8 000 N

Max stroke (mm)

50 to 500 mm

Voltage

24 V DC

Operating temperature

+10 to +40 °C

Type of protection

IP X4S or X6S

Max. speed no load (mm/s)

up to 8 mm/s

Duty cycle (%)

10

2D / 3D

Warning Message

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

Publications
IL-05002/6-EN-September 2022 Actuator range

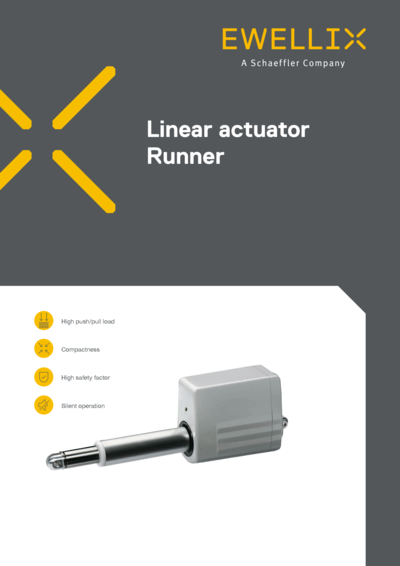

IL-07002/5-EN-September 2022 Runner

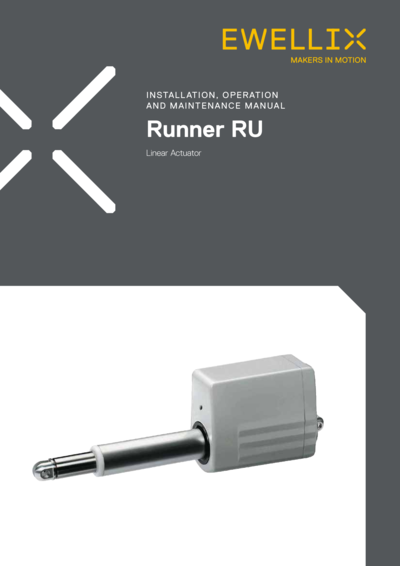

TC-08029/3-EN-September 2022 Runner operating_manual
EL-03007/1-EN-September 2022 Solutions for imaging equipment
