Accessories for industrial applications

Benefits

Easy fixations with shaft bocks and supports
Flexible linear guide system together with single housings
Easy maintenance with lubrication fittings

Features

Lubrication fittings for fixation and lubrication
Lightweight shaft fixation with material aluminium
Fixation for open type and closed type in different heights

All accessories supports the easy design and installation of linear guide slides. Shaft blocks and supports are made for high quality shaft fixations at compact or standard range.

Technical Data

Overview

Diameter range on shaft blocks	from 8 to 80 mm
Diameter range on shaft supports	from 12 to 80 mm
Diameter range on housing	from 8 to 80 mm
External seals for compact range	from 6 to 50 mm
Lubrification fitting for fixation on standard range	from 12 to 80 mm

Types

LSHS

LSHS

Compact shaft block for single units of ISO series 1 from 12 to 50 mm shaft size.

LSCS

LSCS

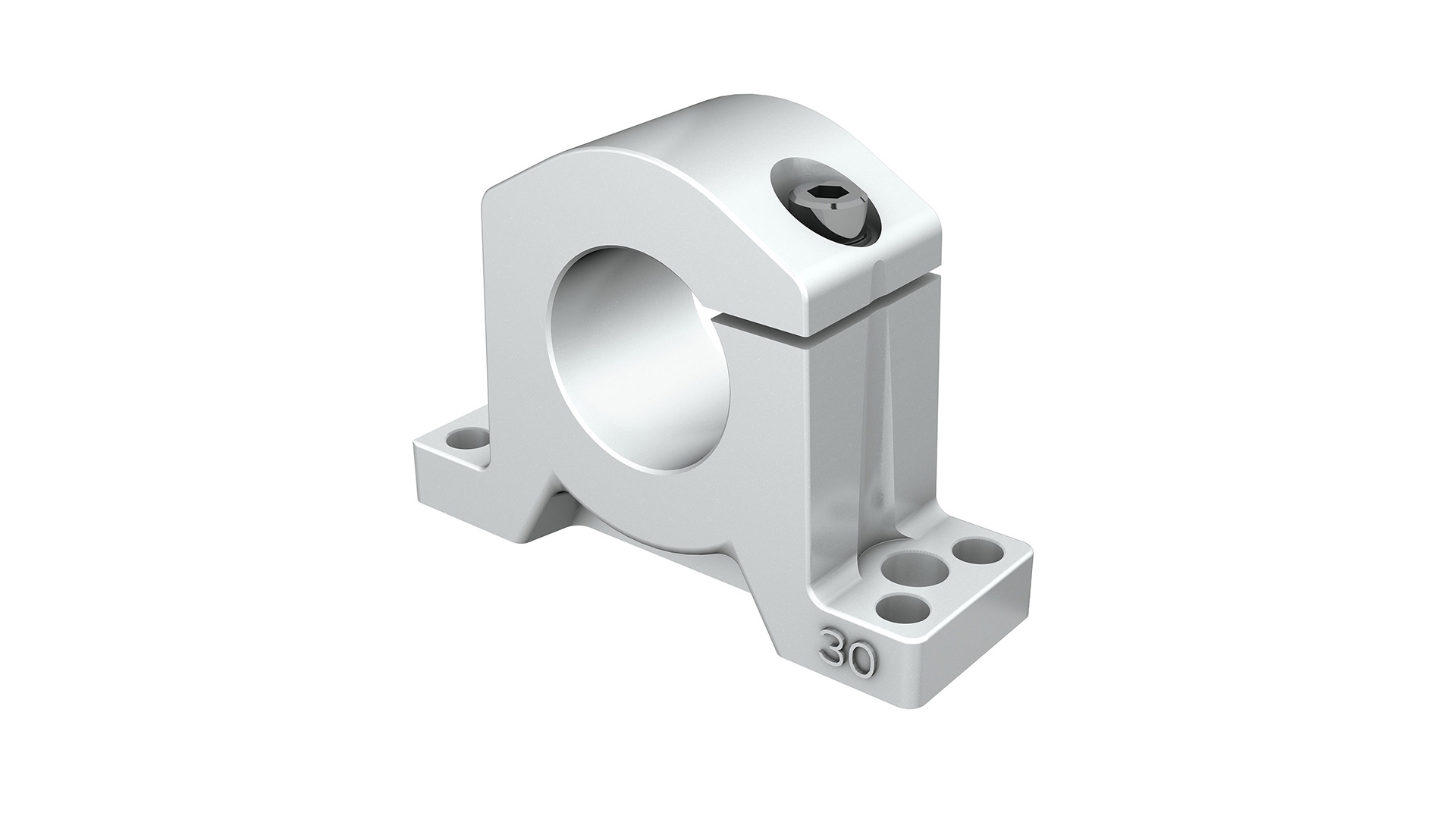

Lightweight shaft block for single units of ISO series 1 and 3 from 12 to 50 mm shaft size.

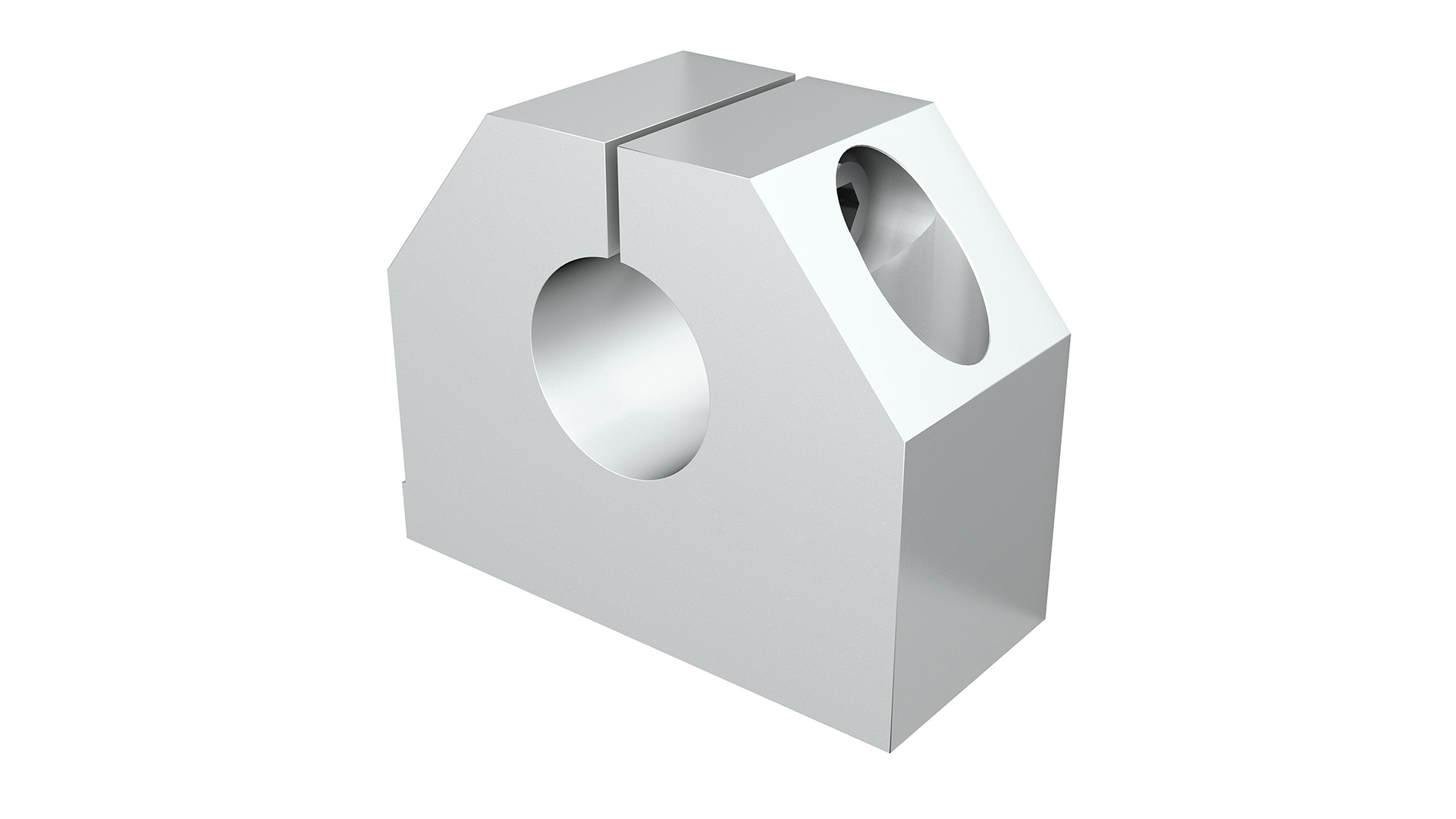

LSNS

LSNS

Standard shaft block for single units of ISO series 3 from 12 to 50 mm shaft size.

LEBS

LEBS

Compact tandem shaft block for duo and Quadro units of ISO series 1 from 12 to 50 mm shaft size.

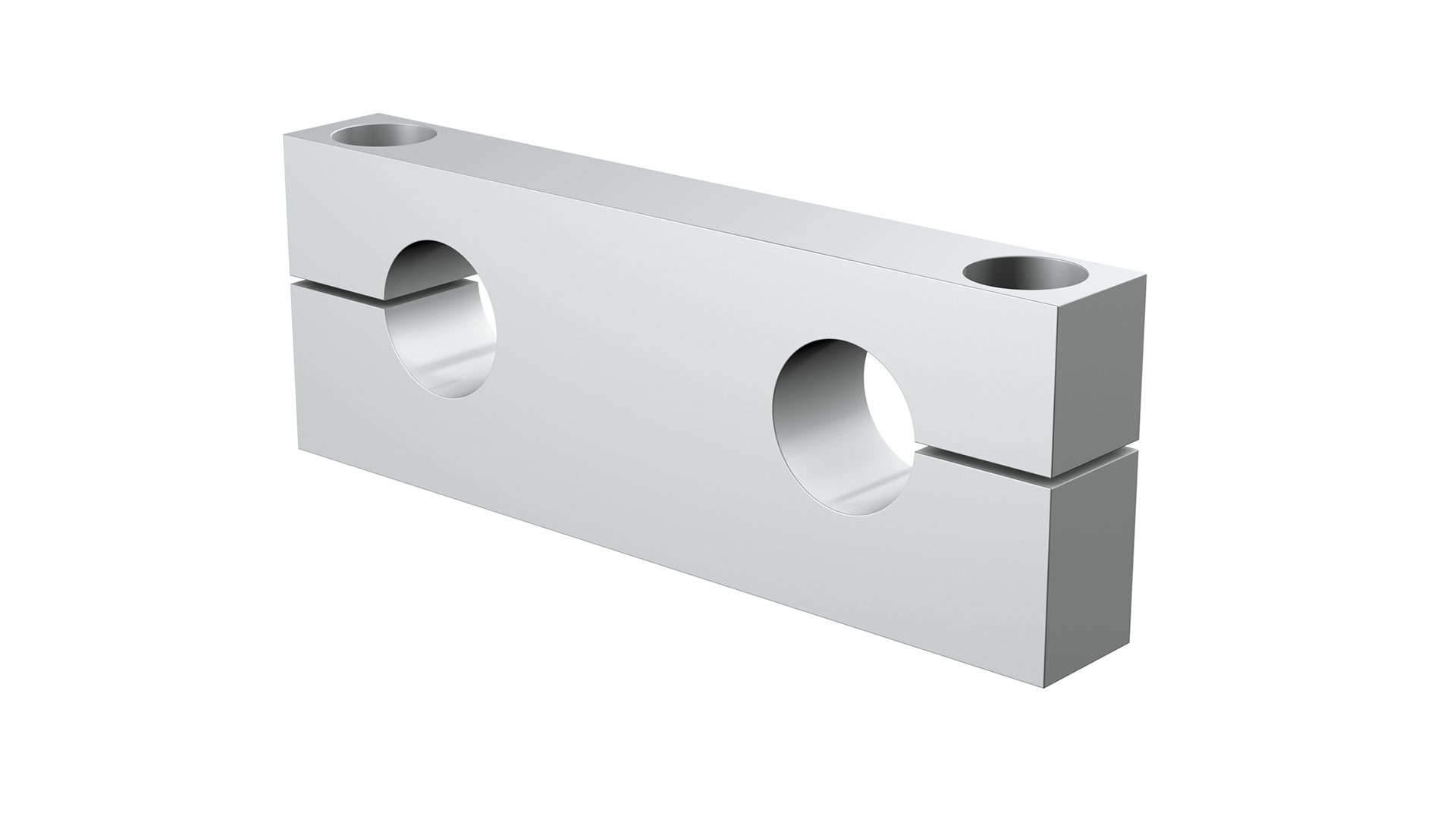

LEAS

LEAS

Standard tandem shaft block for quadro units of ISO series 3 from 12 to 50 mm shaft size. Available in two height variants

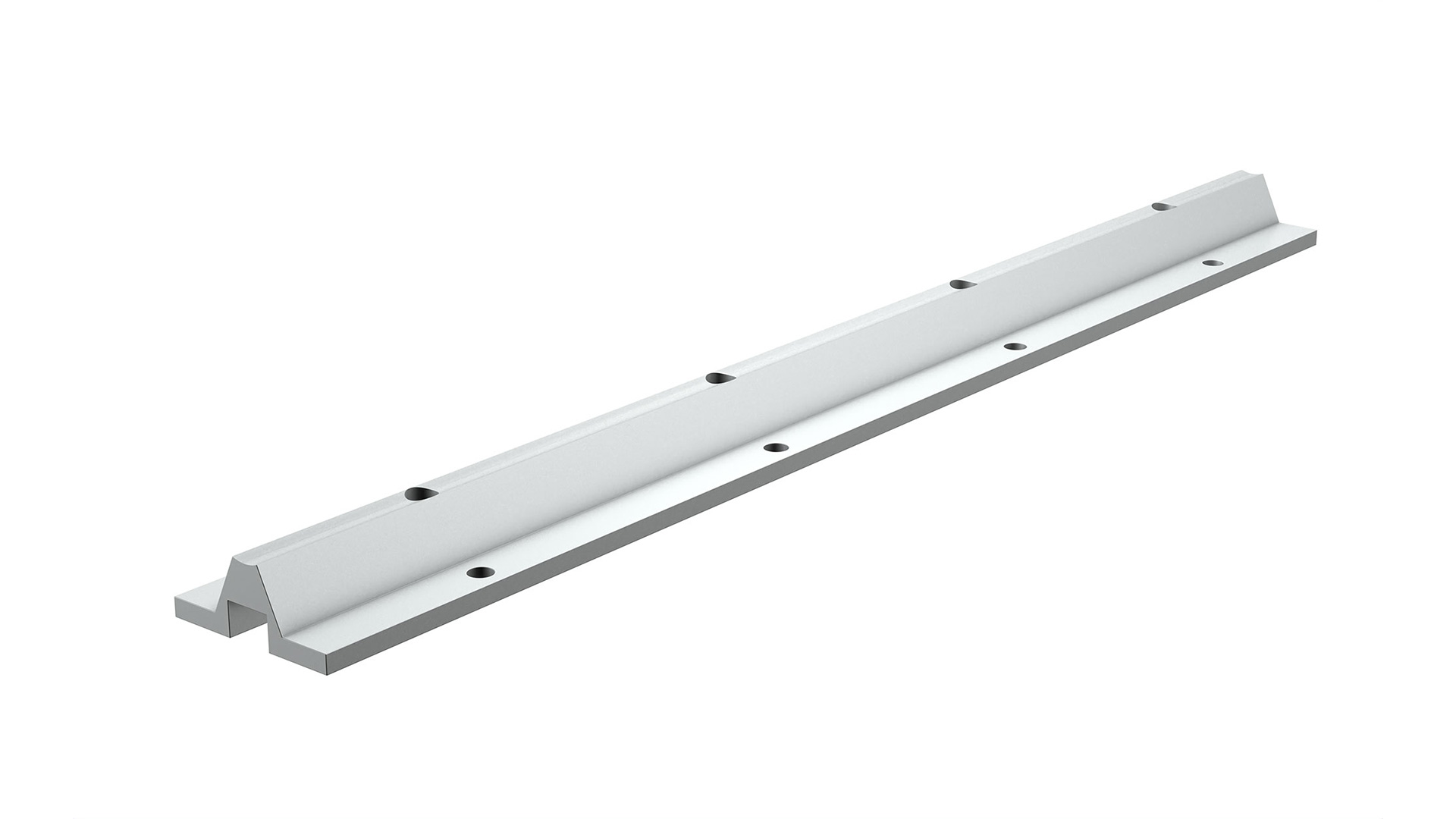

LRCB

LRCB

Standard shaft support for all open units of ISO series 3 from 12 to 50 mm shaft size. Drilled with mounting holes in 600 mm length.

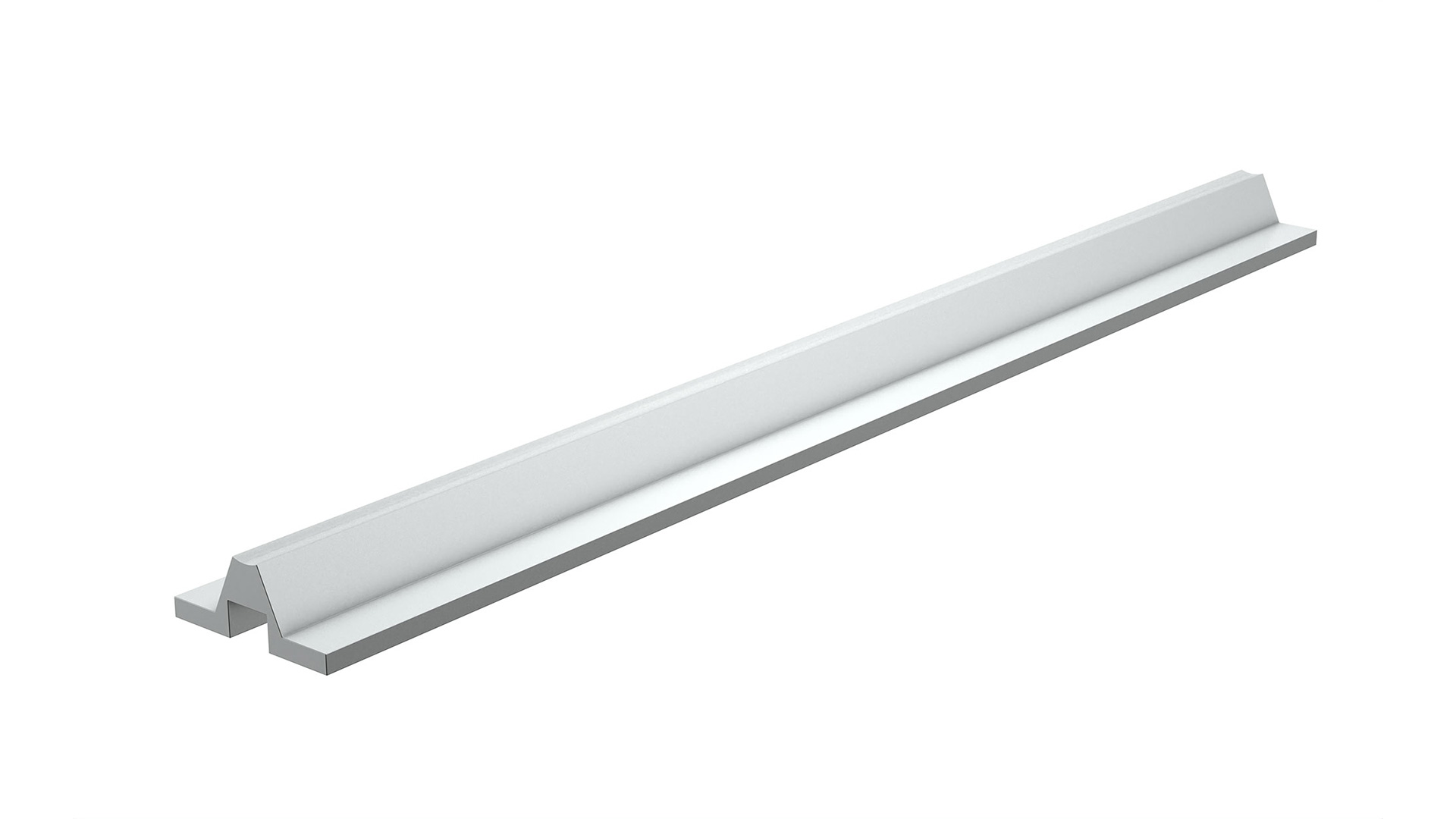

LRCC

LRCC

Standard shaft support for all open units of ISO series 3 from 12 to 50 mm shaft size. Undrilled for flexible use in 600 mm length.

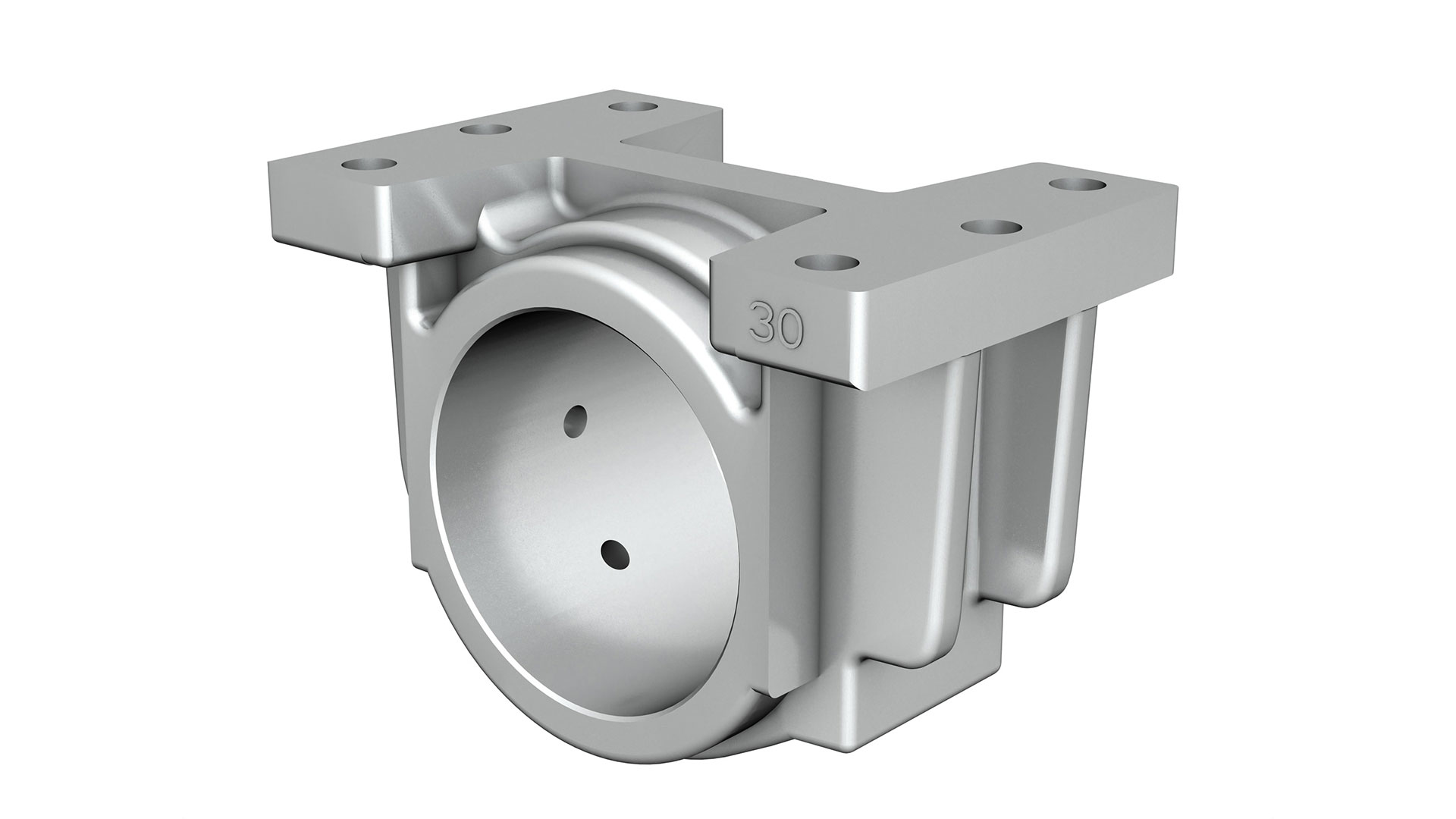

LHCR

LHCR

Standard housing in closed lightweight design for all ISO series 3 bearings from 8 to 80 mm shaft size.

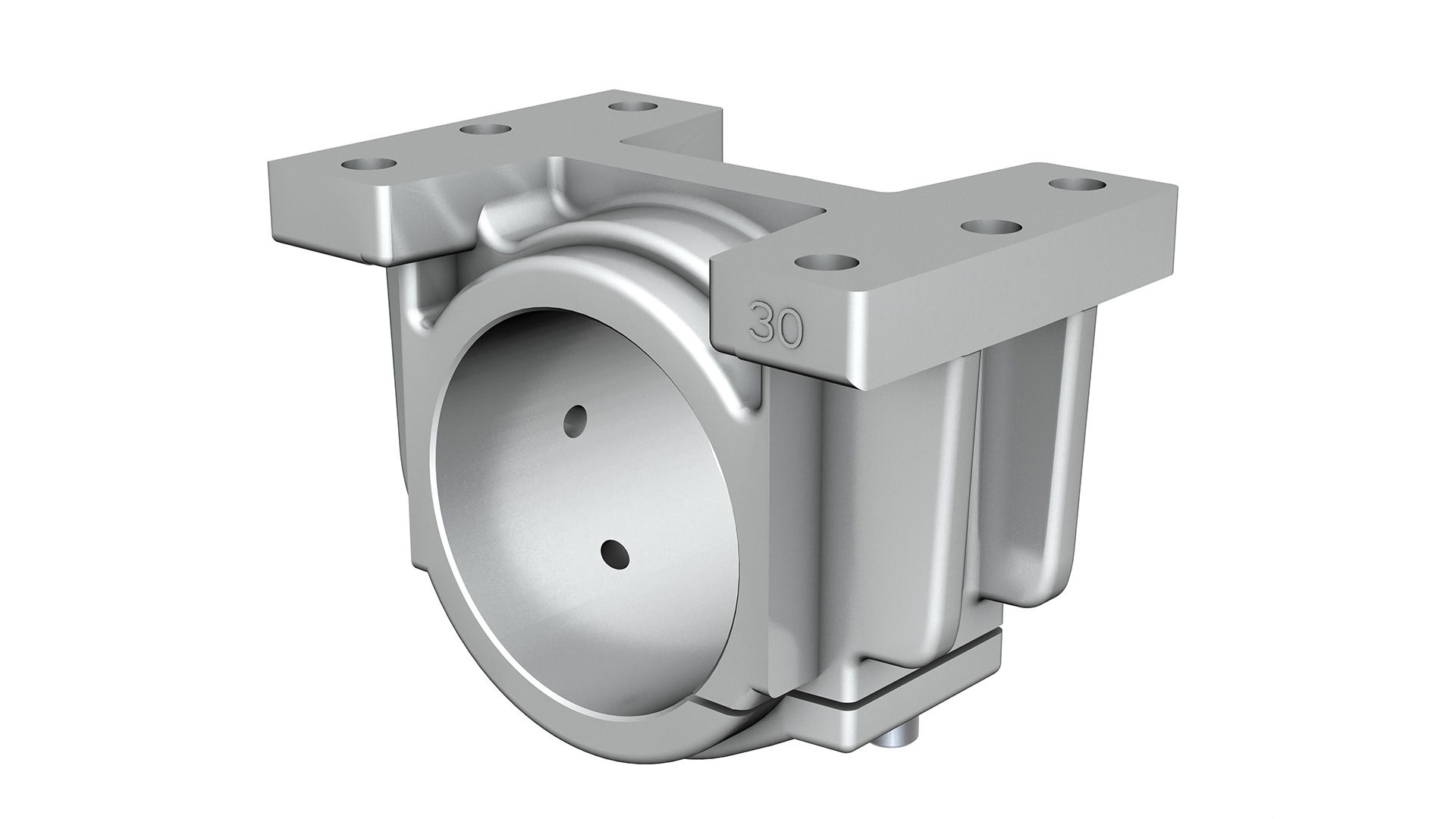

LHCS

LHCS

Standard housing in slotted lightweight design for all ISO series 3 bearings from 8 to 80 mm shaft size.

LHCT

LHCT

Standard housing in open lightweight design for all ISO series 3 bearings from 12 to 80 mm shaft size.

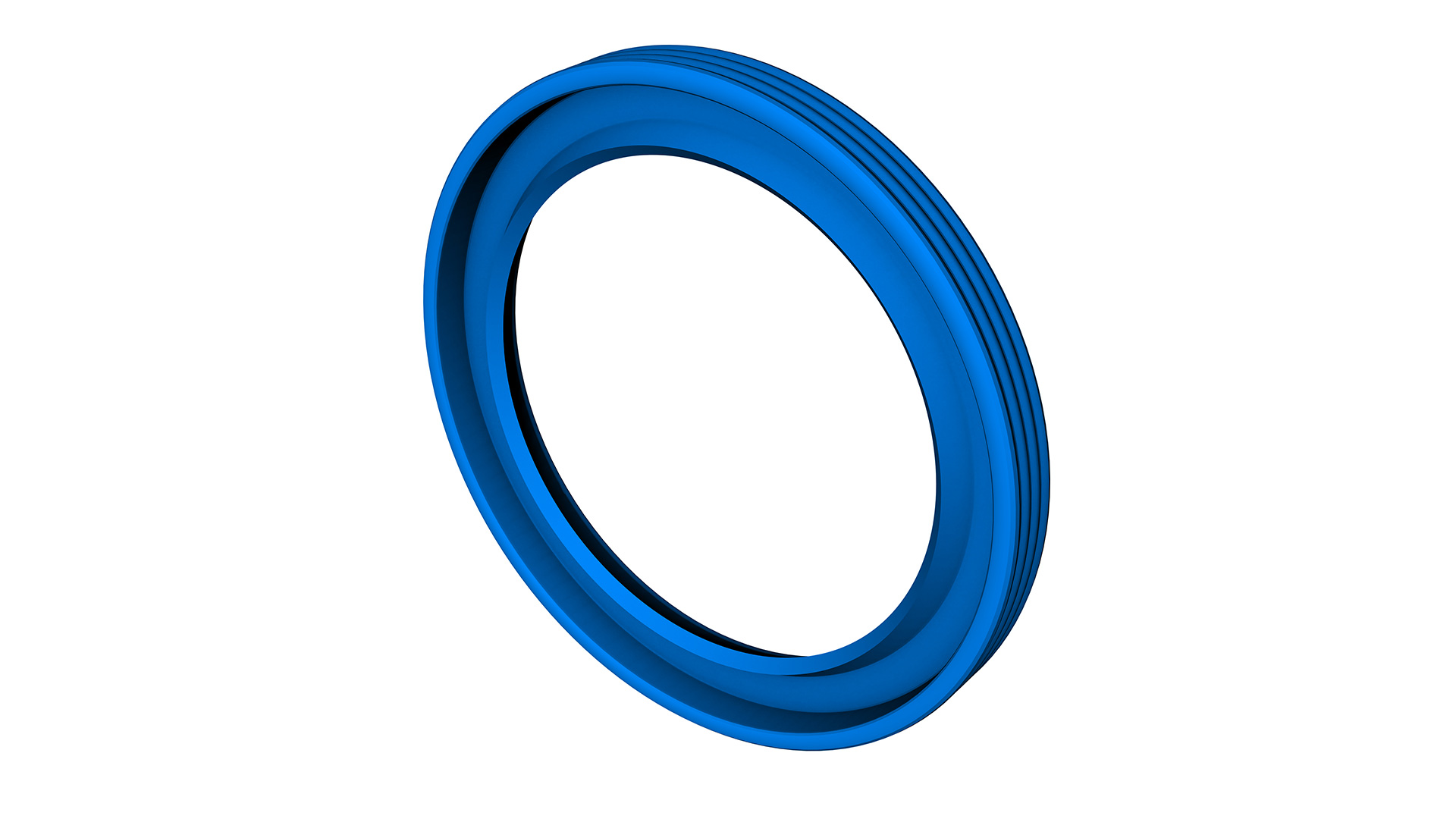

SP

Compact external shaft seal for harsh environments for ISO series 1 from 6 to 50 mm shaft size.

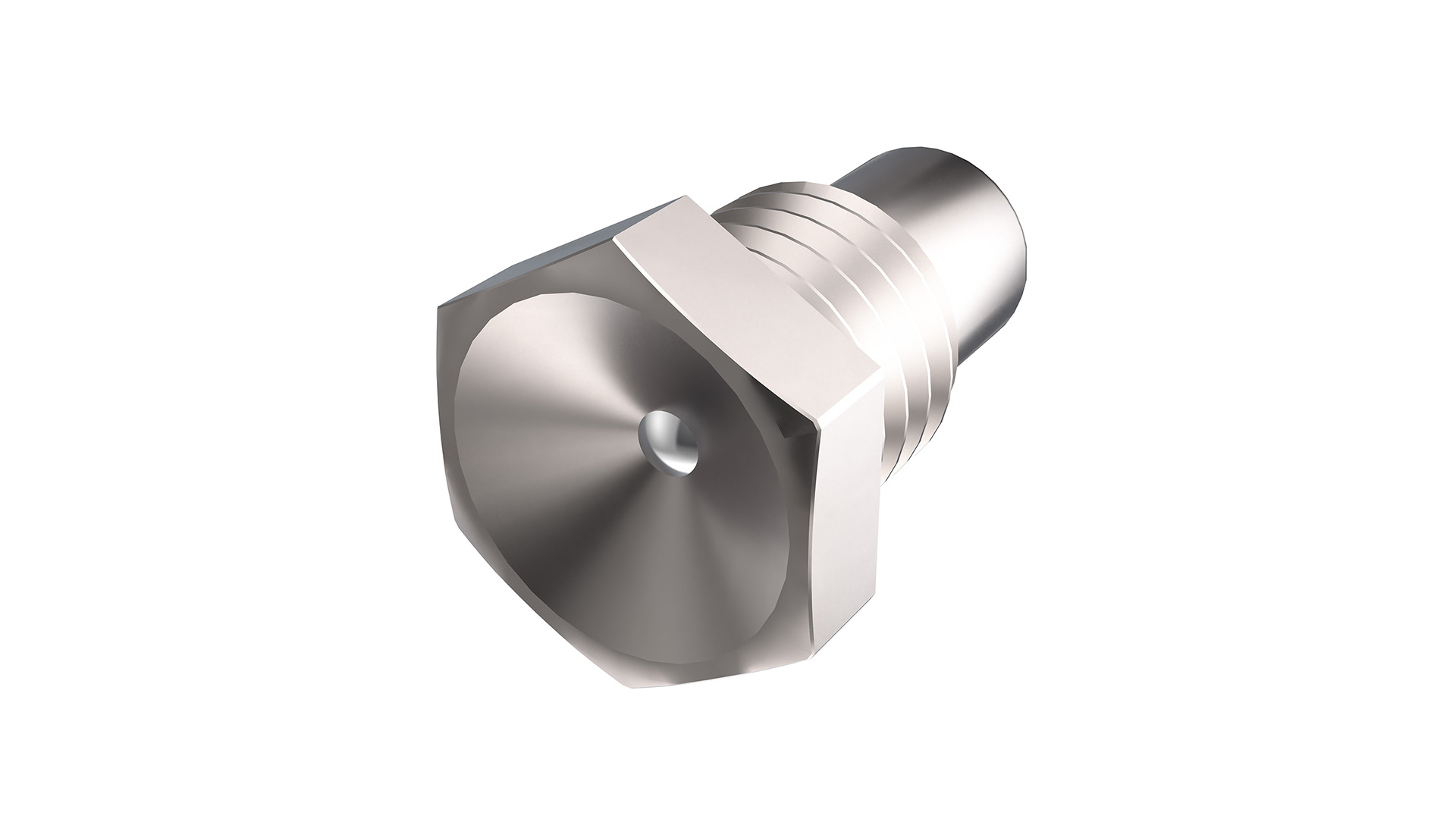

VN

Lubrication fitting and axial fixation for all ISO series 3 bearings from 12 to 80 mm shaft size.

2D / 3D

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
