Precision shafts

Benefits:
  • Exceptionally high degree of stability
  • Designed for extended service life
  • Variable standard designs and materials
Features:
  • High precision grind shafts
  • Available in standard shafting designs
  • Large range of several steel grades

Ewellix precision shafts are induction hardened and have an outside diameter of class h6 or h7 tolerance. They are available in various materials and standard design options. The design options are visible under types from ESSC 1 to 8.

Product tab contents

Technical Data

Sub tab

Overview
Diameter range

from 3 to 80 mm

Length in one piece

200 mm to 6 200 mm

Shaft types and steel grades

Standard steel: LJM EN 1.1213 / AISI 1055
Stainless steel: LJMR EN 1.4112 / AISI 440B
Stainless steel: LJMS EN 1.4034 / AISI 440B
Chrome plated: LJMH EN 1.1213 / AISI 1055
Hollow shaft: LJT EN 1.3505 / AISI 5210

Types

ESSC1

  • Shaft cut to length and deburred
  • Length tolerance ±1,5 mm

ESSC2

  • Shaft cut to length with chamfer
  • Chamfer with r value of minimum
    1 mm
  • Length tolerance ±1,5 mm

ESSC3

  • Shaft cut to length with chamfer 25°
  • With machined front surface 90°
  • Length tolerance ±0,1 mm up to 3 m length
  • Chamfer with r value

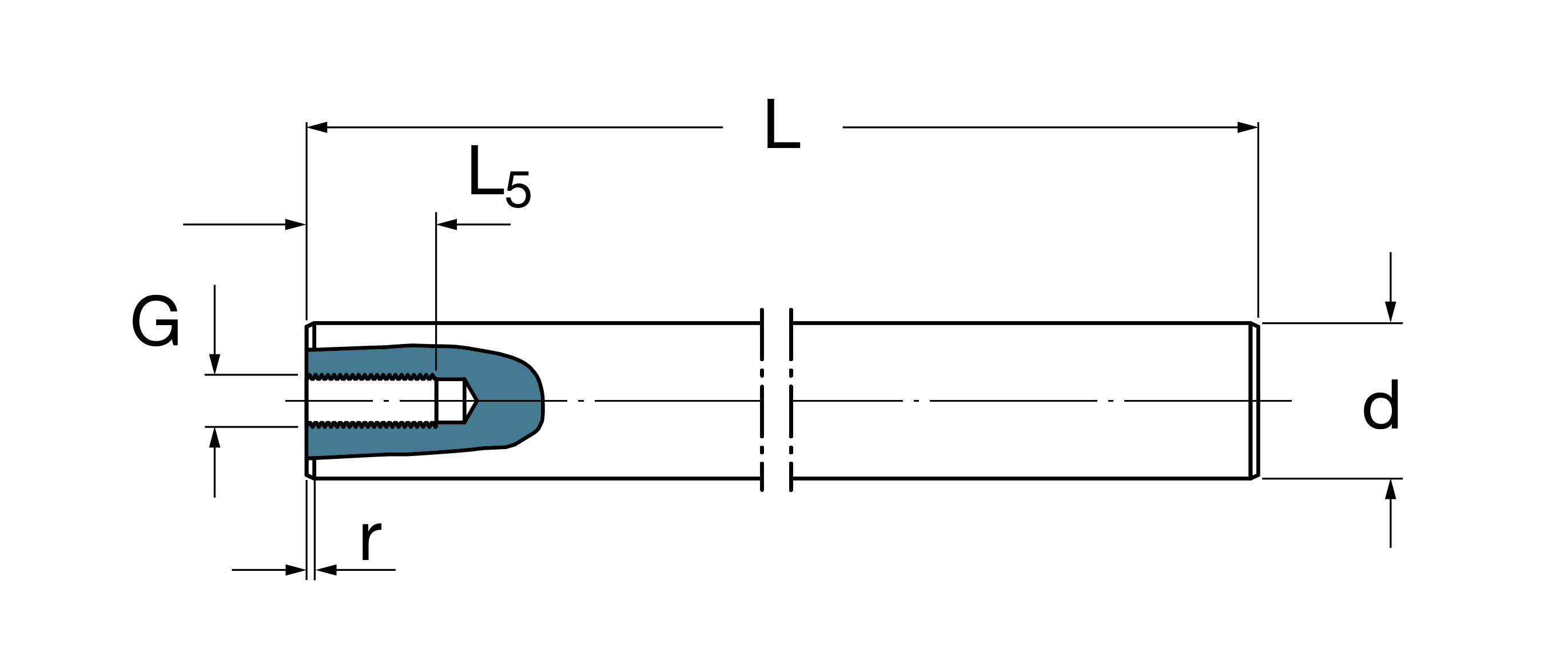

ESSC4

  • Shaft cut to length with chamfer 25°
  • With machined front surface 90°
  • Length tolerance ±0,1 mm up to
    3 m length
  • Chamfer with r value
  • With one axial thread

ESSC5

  • Shaft cut to length with chamfer 25°
  • With machined front surface 90°
  • Length tolerance ±0,1 mm up to
    3 m length
  • Chamfer with r
  • With two axial threads

ESSC6

  • Shaft cut to length with chamfer
  • Chamfer with r value of minimum
    1 mm
  • Length tolerance ±1,5 mm
  • Shaft with radial threads for LRCB shaft supports
  • First radial thread position at
    Jx = J/2

ESSC7

  • Shaft cut to length with chamfer
  • Chamfer with r value of minimum
    1 mm
  • Length tolerance ±1,5 mm
  • Shaft with radial threads
  • Dimension J and Jx as specified in customer's drawing

ESSC8

  • Shaft cut to length with chamfer
  • Chamfer with r value of minimum
    1 mm
  • Length tolerance ±1,5 mm
  • Shaft with radial threads for LRCB shaft supports
  • First radial thread position at
    Jx = J/2
  • Shaft fully supported and mounted with LRCB shaft supports
