CAHB-10

Benefits:
  • Designed and tested for demanding conditions
  • Reliable and cost-effective
  • Reduced overall set time
  • Practically maintenance-free
Features:
  • Compact and robust design, IP66S, wide temperature range and corrosion resistant
  • Absolute or incremental positioning feedback and optional integrated limit switches
  • Integrated thermal protection
  • Other design options are available

The CAHB-10 is a compact solution for low load applications powered by DC voltage and is virtually maintenance-free, self-locking, IP66S rated. Designed to operate at temperatures from -40 to 85 °C and up to 25% duty cycle, Ewellix's CAHB-10 electromechanical actuator family features robust metal gears and corrosion-resistant housings. Other design options are available.

Product tab contents

Technical Data

Sub tab

Overview
Push load

up to 1 500 N

Pull load

up to 1 500 N

Max stroke (mm)

50 to 300 mm

Voltage

12 or 24 V DC

Operating temperature

-40 to +85 °C

Type of protection

IP 66S

Max. speed no load (mm/s)

up to 45 mm/s

Duty cycle (%)

25

2D / 3D

Warning Message

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

Publications
IL-05002/6-EN-September 2022 Actuator range
IL-06022-EN-October_2021_CAHB_series
TC-08015-EN-April 2020 CAHB10 operating manual

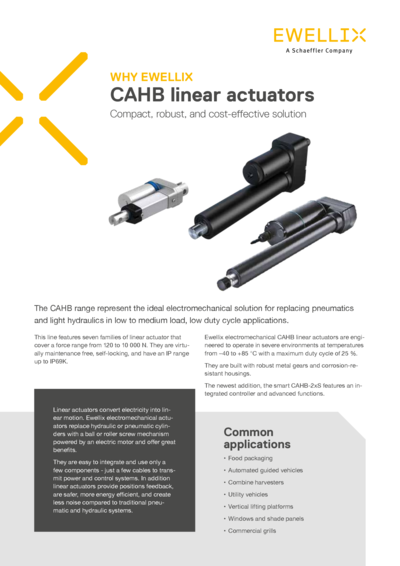

EL-04013-EN-July 2022 WhyEwellix-CAHB
EL-02001/2-EN-September 2022 Fluid power replacement
EL-03005/3-EN-September 2022 Aerodynamic booster actuator
EL-03009/1-EN-September 2022 Solution for mobile machinery
EL-03017-EN-November 2022-Solutions for agricultural machinery
