LIFTKIT-TM

Benefits

  • Extended operating range of TM cobots to increase productivity and save costs
  • No hardware/software upgrades required
  • Direct positioning access within the TM control environment
  • Vibration-free and virtually maintenance-free movement
  • Compatible with VISUAL COMPONENT software

Features

  • Certified TM plug-and play positioning axis
  • Ready-to-use complete system
  • Software plugin TM control system included
  • Robust column design for industrial use

Robots are often used for palletising, material handling, inspection, construction, etc., but reach their limits once the robot arm is fully extended at a certain height. The easy-to-assemble LIFTKIT increases the reach of any TM cobot by moving it along a vertical axis. The cobot base can be raised or lowered during palletising so that it is always in an optimum working position. This increased range improves productivity and reduces costs. The LIFTKIT-TM is a ready-to-install system and includes a lifting column with a TM cobot mounting interface, a controller and a TM software plug-in for robots, so that movements can be programmed directly via the cobot controller. The system includes redundant safety-certified relays for a safe stop procedure during operation. The TM mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.


      Push load
      1 500 N
      Pull load
      0
      Max stroke (mm)
      500 to 1 400 mm
      Operating temperature
      10 to +40 °C
      Type of protection
      IP 40
      Max. speed no load (mm/s)
      80 mm/s
      Duty cycle (%)
      10
      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
      IL-07032/4-EN-March 2023_LIFTKIT-TM
      TC-08048-EN-March 2021 LIFTKIT quick start guide

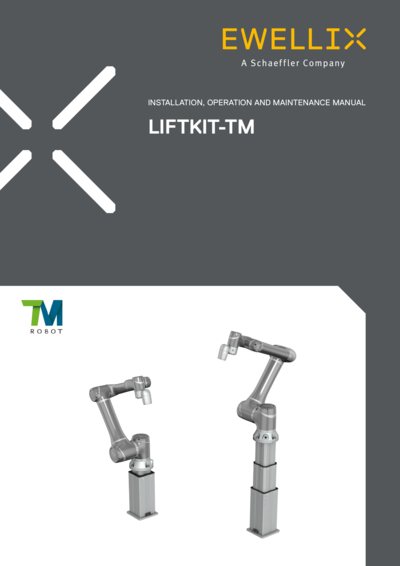

      TC-08050/4-EN-June 2023-LIFTKIT-TM operating manual
      EL-03012/1-EN-September 2022 Linear technology for flexible assembly lines
      EL-03014/1-EN-September 2022 Solutions for material handling
      EL-03018/1-EN -February 2023 7th axis solutions to boost your robot s capabilities
