Accessories for industrial applications

Accessories

Benefits:

Easy fixations with shaft bocks and supports
Flexible linear guide system together with single housings
Easy maintenance with lubrication fittings

Features:

Lubrication fittings for fixation and lubrication
Lightweight shaft fixation with material aluminium
Fixation for open type and closed type in different heights

All accessories supports the easy design and installation of linear guide slides. Shaft blocks and supports are made for high quality shaft fixations at compact or standard range.

Product tab contents

Technical Data

Sub tab

Overview


Diameter range on shaft blocks	from 8 to 80 mm
Diameter range on shaft supports	from 12 to 80 mm
Diameter range on housing	from 8 to 80 mm
External seals for compact range	from 6 to 50 mm
Lubrification fitting for fixation on standard range	from 12 to 80 mm

Types

LSHS

Compact shaft block for single units of ISO series 1 from 12 to 50 mm shaft size.

LSCS

Lightweight shaft block for single units of ISO series 1 and 3 from 12 to 50 mm shaft size.

LSNS

Standard shaft block for single units of ISO series 3 from 12 to 50 mm shaft size.

LEBS

Compact tandem shaft block for duo and Quadro units of ISO series 1 from 12 to 50 mm shaft size.

LEAS

Standard tandem shaft block for quadro units of ISO series 3 from 12 to 50 mm shaft size. Available in two height variants

LRCB

Standard shaft support for all open units of ISO series 3 from 12 to 50 mm shaft size. Drilled with mounting holes in 600 mm length.

LRCC

Standard shaft support for all open units of ISO series 3 from 12 to 50 mm shaft size. Undrilled for flexible use in 600 mm length.

LHCR

Standard housing in closed lightweight design for all ISO series 3 bearings from 8 to 80 mm shaft size.

LHCS

Standard housing in slotted lightweight design for all ISO series 3 bearings from 8 to 80 mm shaft size.

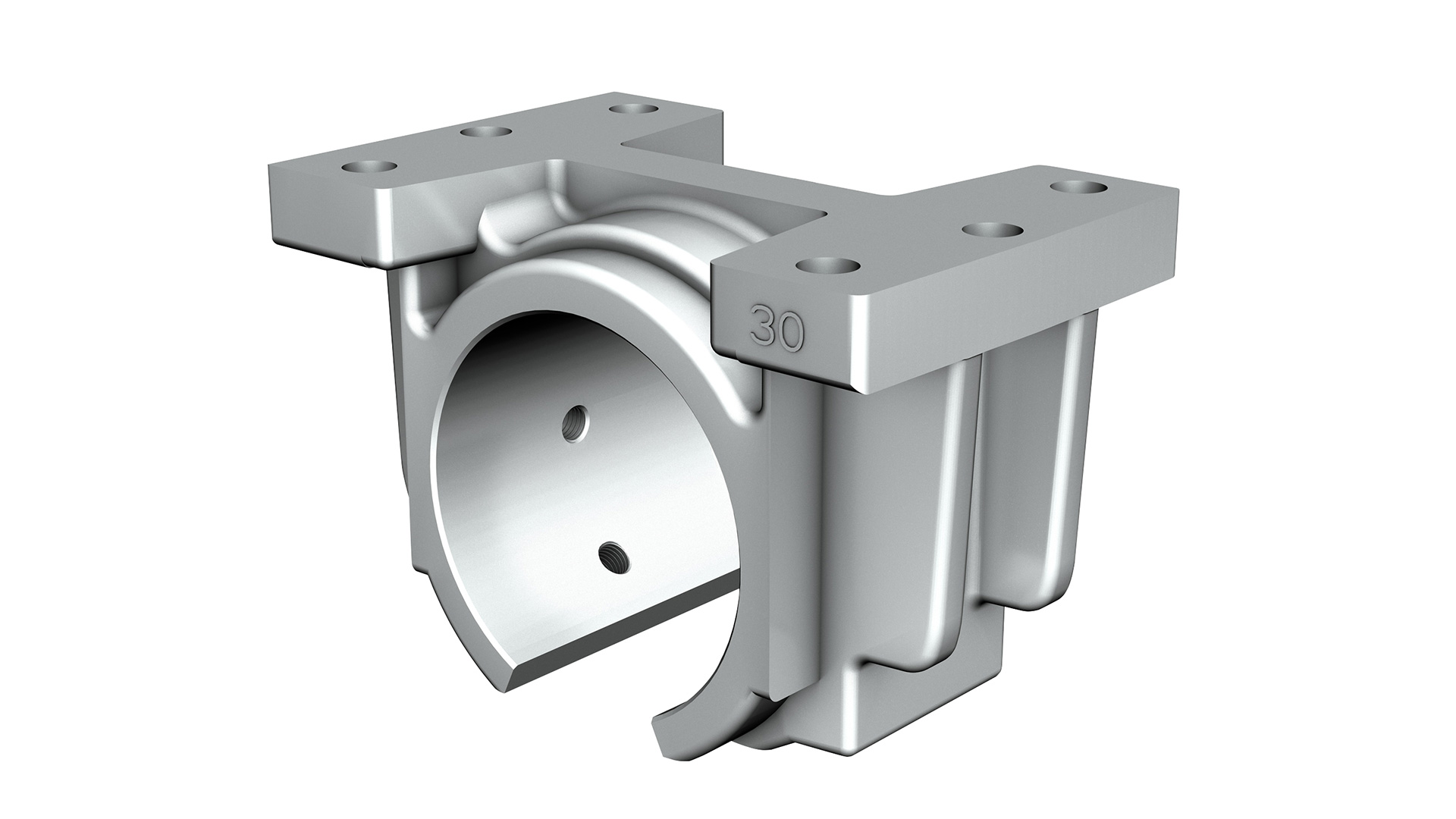

LHCT

Standard housing in open lightweight design for all ISO series 3 bearings from 12 to 80 mm shaft size.

SP

Compact external shaft seal for harsh environments for ISO series 1 from 6 to 50 mm shaft size.

VN

Lubrication fitting and axial fixation for all ISO series 3 bearings from 12 to 80 mm shaft size.
