SCU

Benefits:

Centralised system that has stored positions and synchronised or parallel movement
Overload protection
Approved for medical use, complies with IEC 60601-1
Easy plug and play system shortening time to market

Features:

3 or 6 motor outputs (DIN8) with synchronous run and memory functions
4 inputs for external limit switches and 3 operating device inputs
Mains current cut-off, individual current cut-off for each channel
Single fault cut off and long lifetime > 100 000 cycles

A compact controller for up to 6 actuators. The parameters of the motor outputs can be set individually. The SCU control unit from Ewellix is fail-safe and medically approved.

Case studies:

Product tab contents

Technical Data

Sub tab

Overview

Input voltage	24 V DC or 120 or 230 V AC
Output voltage	24 V DC
Duty cycle intermittent	1 min. / 9 min.
IP protection	X4
Approvals	EN 60601-1 / UL 60601-1
Actuator ports	3 or 6
Operating device ports	3

2D / 3D

Warning Message

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

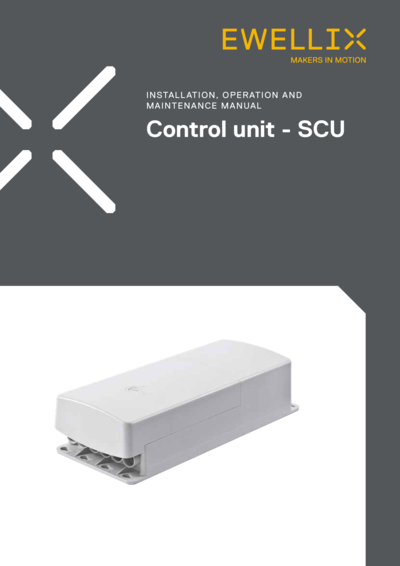

Publications
