LIFTKIT-OM

Benefits:
  • Extended operating range of Omron cobots to increase productivity and save costs
  • No hardware/software upgrades required
  • Direct positioning access within the Omron TM control environment
  • Vibration-free and virtually maintenance-free movement
Features:
  • Certified Omron plug-and play positioning axis
  • Ready-to-use complete system
  • Software plugin Omron TM control system included
  • Robust column design for industrial use
Cobots are often used for palletising but reach their limits as soon as the pallet stack reaches a certain height. The easy-to-assemble LIFTKIT increases the reach of any Omron TM cobot by moving it along a vertical axis. The cobot base can be raised or lowered during palletising so that it is always in an optimum working position. This increased range improves productivity and reduces costs. The LIFTKIT-OM is a ready-to-install system and includes a lifting column with an Omron cobot mounting interface, a controller and an Omron software plug-in for robots, so that movements can be programmed directly via the cobot controller. The system includes redundant safety-certified relays for a safe stop procedure during operation. The Omron mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.

Product tab contents

Technical Data

Sub tab

Overview
Push load
1 500 N
Pull load
0
Max stroke (mm)
500 to 1 400 mm
Operating temperature
10 to +40 °C
Type of protection
IP 40
Max. speed no load (mm/s)
80 mm/s
Duty cycle (%)
10
2D / 3D

Warning Message

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.

Software updates

SBOX-L-xx-v1.0.0

Publications
IL-07028/2-EN-September 2022 LIFTKIT-OM

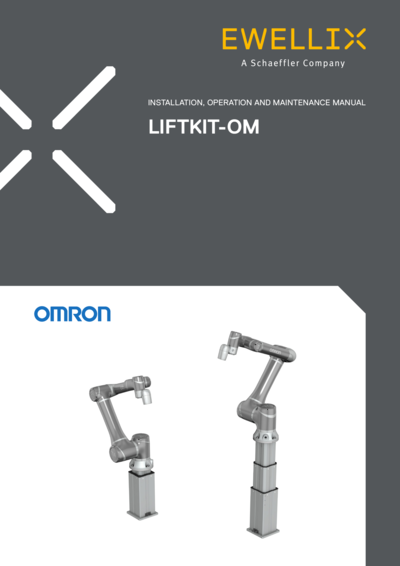

TC-08045/1-EN-May 2022 LIFTKIT-OM user manual
TC-08048-EN-March 2021 LIFTKIT quick start guide
EL-02002/6-EN-September 2022 Linear axes for collaborative robots
EL-03012/1-EN-September 2022 Linear technology for flexible assembly lines
EL-03014/1-EN-September 2022 Solutions for material handling
EL-03018-EN-December 2022 7th axis solutions to boost your robot's capabilities
