LIFTKIT-0S

Benefits

  • Extended operating range of any cobot to increase productivity and save costs
  • Direct positioning access within the cobot controller
  • Ideal for control via an external PLC
  • Vibration-free and virtually maintenance-free movement
  • Compatible with VISUAL COMPONENT software

Features

  • General purpose unit
  • Ready-to-use complete system
  • Connection to the cobot via TCP/IP protocol on standard Ethernet port
  • Fully integrated script library for easy, direct control of the lifting column
  • Robust column design for industrial use
  • Enhanced version for large robot (50 to 75 kg)

Robots are often used for palletising, material handling, inspection, construction, etc., but reach their limits once the robot arm is fully extended at a certain height. The easy-to-assemble LIFTKIT increases the reach of the robot by moving it along a vertical axis. The base of the robot can be raised or lowered during operation so that it is always in an optimum working position. This increased range improves productivity and reduces costs.

The LIFTKIT-0S is a ready-to-install system and includes a lifting column with a control unit that can be connected to the robot via Ethernet port and then programmed and controlled through a standard TCP/IP protocol via fully integrated script commands. Complex and precise motion tasks can be realised with a simple set of commands. The system includes redundant safety-certified relays for a safe stop procedure during operation – when connected to the robot’s safety output ports. The LIFTKIT-0S is supplied with a bottom mounting plate and requires an upper custom plate (not included) to connect the robot to the lifting column.

      Push load
      1 500 N
      Pull load
      0
      Max stroke (mm)
      500 to 1 400 mm
      Operating temperature
      10 to +40 °C
      Type of protection
      IP 40
      Max. speed no load (mm/s)
      80 mm/s
      Duty cycle (%)
      10
      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
      IL-07029/3-EN-January 2023-LIFTKIT-0S

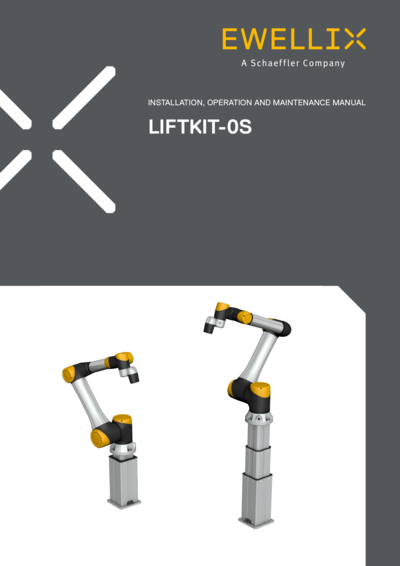

      TC-08046/4-EN-June 2023-LIFTKIT-0S user manual
      TC-08048-EN-March 2021 LIFTKIT quick start guide
      EL-03012/1-EN-September 2022 Linear technology for flexible assembly lines
      EL-03014/1-EN-September 2022 Solutions for material handling
      EL-03018/1-EN -February 2023 7th axis solutions to boost your robot s capabilities
